How to Fix or Repair Stone Retaining Walls

Stone retaining walls hold the dirt from a sloping yard and keep it from sliding away. Installing a stone retaining wall creates a two-tiered effect in a yard. Elevated soil lies behind the wall and graded soil lies in the space in front of the wall. Many homeowners choose to beautify the raised soil behind the wall by planting shrubs and flowers. Over time and exposure to freeze/thaw cycles, stone walls can develop cracks and stones can loosen. Repairs and renovations are necessary to keep the wall intact and hold dirt back.

...

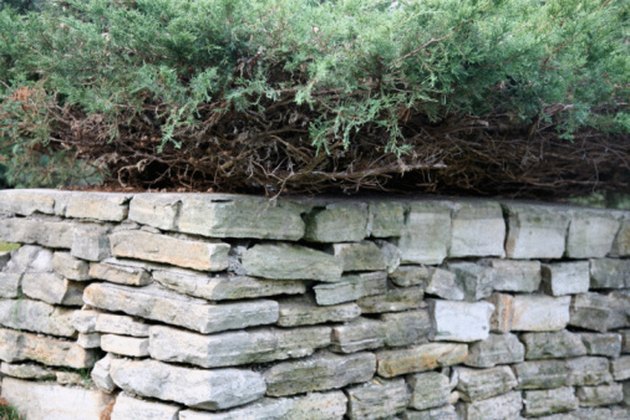

Planting shrubs beautifies a plain stone retaining wall.

Cracking Mortar Joints

Step 1

Hold a cape chisel or masonry cold chisel at an angle along the mortar joint. Hit the chisel with a 2-lb. hammer to fracture the mortar. Move the cape chisel or masonry cold chisel along the mortar line and continue to hit with a 2-lb. masonry hammer until all of the damaged mortar breaks; remove by hand.

Step 2

Clean the mortar joint with a wire brush to remove small pieces of stuck masonry.

Step 3

Combine dry mortar mix and water according to the manufacturer's measurements and directions in a trough, wheelbarrow or large bucket. Use a hoe to mix the dry mortar and water until the mortar holds its form without falling. Mortar joints on stone retaining walls are non-load-bearing, making the strength value of the mortar inconsequential. Stone retaining walls rely on gravity for strength rather than mortar. Adding mortar is for aesthetic value.

Step 4

Wet the mortar joints with water with a spray bottle or use the mist setting on a garden hose. Do not apply mortar to dry stones because the stones will pull the water out of the mortar and cause the mortar to fall apart when it dries.

Step 5

Pick up wet mortar on a trowel and load it in a mortar bag. Position the tip of the mortar bag into the joint between stones and squeeze the bag. Pull the tip of the mortar bag along the mortar joints while squeezing it to fill in all void joints. Refill the mortar bag as necessary.

Step 6

Place a jointing tool on the mortar joint and pull it along while pressing the mortar in to create a smooth mortar joint.

Cracking Stones

Step 1

Clean the edges of the crack with a wire brush.

Step 2

Vacuum the dirt, masonry dust and debris out of the split with a shop vacuum. Crack fillers require a clean surface for proper adhesion and bonding.

Step 3

Insert the tip of a tube of an epoxy-based masonry crack filler into the crack. Begin at the end of the crack and work toward the opposite end. Squeeze the tube to inject the epoxy-based filler into the crack to seal it.

Cleaning

Step 1

Mix 1/4 cup of a mild liquid soap or detergent into a bucket of warm water. You can also use commercially available stone and masonry cleaner. Apply masonry stone cleaner to the stone wall according to the manufacturer's directions.

Step 2

Dip a stiff broom or scrub brush into the soapy water and scrub the stone wall. Start at the top of the wall and work your way down.

Step 3

Spray the wall with water from a hose to rinse.
