How to Install a Zing Ear Pull Chain Switch

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • Non-contact voltage detector

  • Wire cutters

  • Wire strippers

  • Pliers

  • Twist on wire connectors

  • Electrical tape


Always make sure the power is off before beginning any electrical work. It only takes a few amps to have a painful experience you won't soon forget.

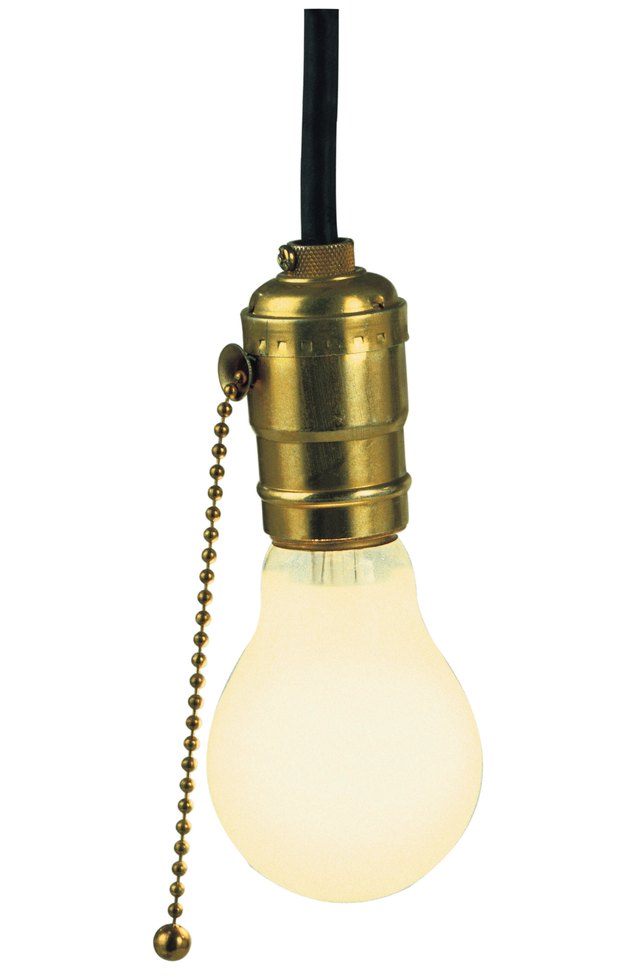

Installing a Zing Ear pull chain switch provides control over the device.

Zing Ear Enterprise was established in 1993 with the goal of building electronic components and switches for the consumer and industrial market. The company's line of pull chain switches can be used as a replacement part inside a lamp or fan, or to control any electrical device. A pull chain switch uses a chain to open and close the circuit. They are most commonly found on ceiling lights in cold cellars and attics. Installing a new pull chain switch is simple once you identify the hot wire.


Step 1

Identify which of the two wire's supplying the device is the hot wire. This is typically the black wire in home electrical and the red within automotive electrical. You can also use a non-contact voltage detector to identify which wire is carrying electricity by touching the tip of the detector to each wire.

Step 2

Turn the power off for the device at the source. This may be unplugging it from the outlet or turning the breaker off at the electrical panel. Confirm the power is off by touching a non-contact voltage detector to the wire's insulation.

Step 3

Cut the hot wire with wire cutters in the location you want to install the switch.


Step 4

Strip 3/8 inches of insulation off the end of each cut wire with wire strippers.

Step 5

Twist together one of the black wires from the pull chain switch with one of the hot wires for the device with pliers. Install a twist-on wire connector on top and wrap the connection in electrical tape to provide additional protection.

Step 6

Twist together the other black wire from the pull chain switch with the remaining hot wire on the device. Install a twist-on wire connector on top and wrap the connection in electrical tape to provide additional protection.
