How to Install Ikea European Pax Door Hinges

Hunker may earn compensation through affiliate links in this story.


Your Ikea Pax hinges can be adjusted by loosening the set screw at the center of the bar portion of the hinge. Slide the hinge components in or out to adjust the level and positioning of the door, then tighten the screw to lock everything in place.


Do not over tighten your Ikea Pax hinges. The Ikea furniture models that use Pax hinges are constructed of press board. Press board is made of small bits of wood and sawdust that have been compressed and glued together. Overly tight screws can tear out chunks of the press board and cause it to fall apart.

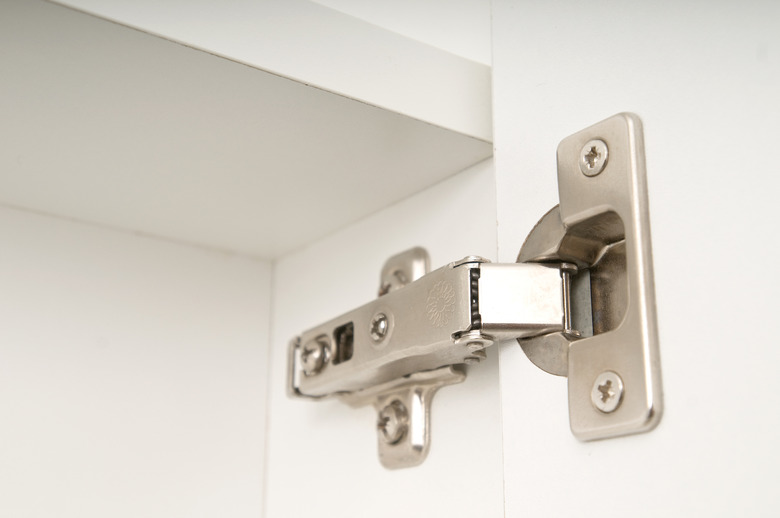

Pax hinges are a part of many Ikea furniture equipment packages.
Image Credit: Jupiterimages/ Images

Ikea sells dozens of items that use European Pax Door Hinges. The European Pax hinge is a piece of stainless steel door closing hardware, with an internally mounted tumbler system that holds doors open, and also helps them to close firmly. The hinges are typically set within a circular cutout in the door panel at one end, and onto the interior wall of the cabinet space at the other.


Step 1

Lay the door to your Ikea furniture item on a flat working surface with the door front facing downward. You should have access to the pre-cut hinge holes on the inside of the door.

Step 2

Insert the rounded end of an Ikea European Pax hinge into the cutout in the door. The long, bar end of the hinge should hang over the edge of the door and onto the floor. Line up the screw holes in the rounded end of the hinge with the screw holes at each side of the hinge cutout. Use your Phillips screwdriver to tighten the screws provided so the hinge is firmly in place. Repeat the process for the second and third hinges as needed.


Step 3

Hold the door up to the assembled cabinet, at the door opening. Line up the screw holes on the edges of each hinge with the corresponding set of screw holes on the inside of the cabinet. Use your screwdriver to tighten the screws provided for each hinge. The door should now hang from the cabinet on its own. Open and close the door to test the hinges.
