How to Replace a Bad Battery Operated Clock Movement

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • Flathead screwdriver

  • Phillips screwdriver

  • Combination pliers

  • Adjustable wrench

Tip

Be sure to measure the depth of the threaded center shaft of the bad movement prior to purchasing a new one to ensure a proper fit.

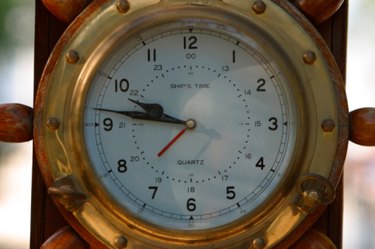

Restore your battery-operated clock by replacing the movement when it goes bad.

Battery-operated clock movements are found in a wide variety of cases under many different names. Most movements operate for many years with no discernible problems other than the need to change batteries every year or so. But even new batteries are not going to help when a movement goes inexplicably bad. Replacing the battery-operated movement in your clock is a job that requires a new movement, a few tools and an ability to work with your hands.

Advertisement

Step 1

Determine what is needed to access the movement. Some clocks have back panels that are screwed on while others are open and readily accessible. Remove any panel screws using the appropriate screwdriver.

Step 2

Remove the sweep-second hand of the clock if it is equipped with one. Place your thumb and forefinger on either side of the center hub of the sweep-second hand. Pull the hand straight out and off from its center arbor.

Step 3

Remove the minute hand by turning its retaining nut counterclockwise by hand. If the nut is tight, use the combination pliers for extra grip and leverage. Hold the minute hand close to its center as you turn the nut.

Advertisement

Step 4

Remove the hour hand by gripping it near the center. Turn the hand from one side to the other as you pull it forward and off the center tube.

Step 5

Remove the battery-operated movement retaining nut with an adjustable wrench. Place the leading end of the wrench jaws on the nut and turn counterclockwise to prevent scratching the dial. Support the movement with your free hand as you turn the nut.

Step 6

Pull the bad movement out from the dial hole of the clock.

Advertisement

Step 7

Install the threaded center of the new battery movement into the dial hole. Place the washer onto the center shaft first, followed by the retaining nut. Tighten the nut clockwise with the adjustable wrench.

Step 8

Install the hour hand onto the center tube by pushing it back until it is snug.

Step 9

Install the minute hand onto its arbor. The center hub of the minute hand is slotted and must be aligned with the accommodating arbor lug. Secure the hand with the retaining nut and tighten clockwise.

Advertisement

Step 10

Align the minute hand to 12 o'clock.

Step 11

Set the hour hand to 12 o' clock moving it near its center. Ensure that it is parallel to the dial. The minute hand must also be parallel to the hour hand, without any contact.

Step 12

Install the sweep-second hand if the movement includes this feature. Place the center tube of the hand over the center arbor and gently press it inward. The sweep hand must be parallel to the minute hand and have enough clearance to avoid contact as it rotates.

Step 13

Check the hands for clearance as you turn the hand-set.
