How to Install Undercabinet Lighting: Two Easy Ways

Hunker may earn compensation through affiliate links in this story.
Image Credit: Hunker in Partnership With Acme Real Estate

If you're thinking about adding undercabinet lighting, you can forget about those screaming-hot halogen puck lights of the past or even the utilitarian fluorescent tube fixtures that dominated the scene for decades. Today's options are much more energy efficient than pucks and are much more streamlined — and also brighter and more consistent — than the old fluorescents.

Advertisement

Video of the Day

Most undercabinet lighting that is now available uses LED lighting, which produces more light per watt than any other standard light source. LEDs (light-emitting diodes) are also highly versatile and can be fashioned into a thin LED strip, tape, rope, puck and various low-profile fixtures. Undercabinet lighting can be installed as a hardwired system and controlled by a wall switch, but most DIYers choose an easy-to-install plug-in system.

Advertisement

How to Install Plug-In Undercabinet Lights

Specific components and wire connections vary among manufacturers and light fixture types, but most plug-in undercabinet lights are installed using a similar process.

Step 1: Plan the Layout of the Lighting System

Plan the layout of the lighting system, including the location of each fixture (and how the fixtures will interconnect), the location of the transformer (as applicable) and the outlet(s) you will plug into. Transformers and dimmer control boxes can be mounted below or above cabinets or hidden inside an upper cabinet. Configure the fixtures according to your layout. For example, strip lights may need to be cut to length or interconnected to splice multiple strips.

Advertisement

Step 2: Mount the Fixtures Under the Cabinets

Mount the fixtures under the cabinets using the provided screws or self-adhesive backing.

Step 3: Plug In the Lights

Run interconnecting power cords between multiple fixtures as applicable. For example, many rigid fixtures (not strips or rope lights) can be interconnected with short cords to "daisy chain" the fixtures together; only the first or last fixture in the line plugs into the power outlet.

Advertisement

Step 4: Secure and Conceal All Cords

Secure and conceal all cords to keep them out of sight as much as possible. Cords can be fastened to the underside of the cabinet or on the side of the cabinet with small cable clamps or with adhesive, such as epoxy or dabs of hot glue. Run the power cord under the cabinet or along wall trim up to a point directly above the outlet, leaving just enough slack to go straight down to the outlet.

Advertisement

Step 5: Turn On the Lights and Test Them

Plug in the transformer, dimmer control or any other devices as applicable and then plug the lighting system into the outlet and test the lights.

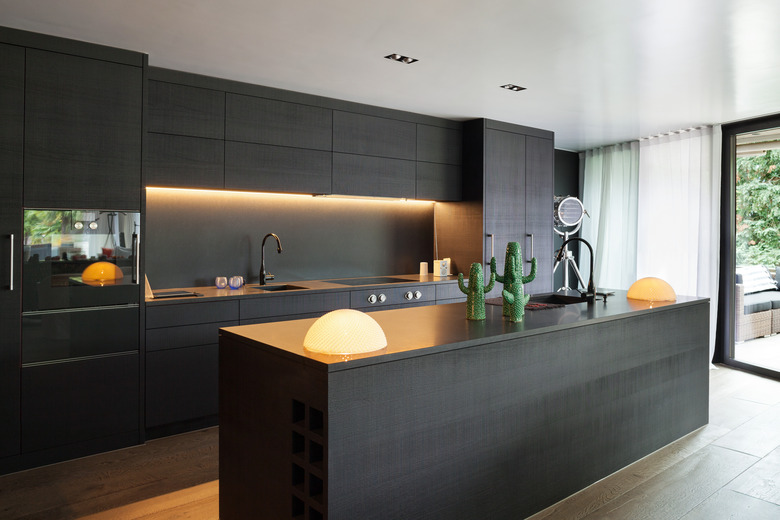

Image Credit: mtreasure/iStock/GettyImages

How to Install Hardwired Undercabinet Lights

There are many ways to connect hardwired lights to the household wiring system, but the simplest option usually involves tapping into an existing lighting circuit in the kitchen, running new cable from an existing light switch electrical box. Another option is to tap into an outlet box that is not one of the countertop (backsplash) outlets. The countertop/backsplash outlets are part of two small appliance circuits, and electrical code prohibits tapping into these for lighting.

Advertisement

Step 1: Determine the Power Source for the New Lighting Circuit

Determine the power source for the new lighting circuit (wall switch box, outlet box, entirely new circuit, etc.). Turn off the power to the source circuit by switching off the correct breaker in the home's service panel (breaker box). Test the circuit wires with a voltage tester to confirm the power is off.

Step 2: Cut Holes for the Cables

Drill a hole in the wall and/or cabinet at each place you need to fish new cable from the fixture location(s) to the source. This may involve cutting out a horizontal strip of drywall if you must run cable through wall studs.

Advertisement

Step 3: Install a Junction Box for the Fixture

Install a junction box (as applicable) in a hidden but accessible location, such as inside a base cabinet or above a wall cabinet. An optional junction box allows you to connect multiple power cables running to fixtures to the source cable at a convenient location. Junction boxes must be accessible; they cannot be covered by drywall or cabinets.

Advertisement

Step 4: Install the Cabling and Fixtures

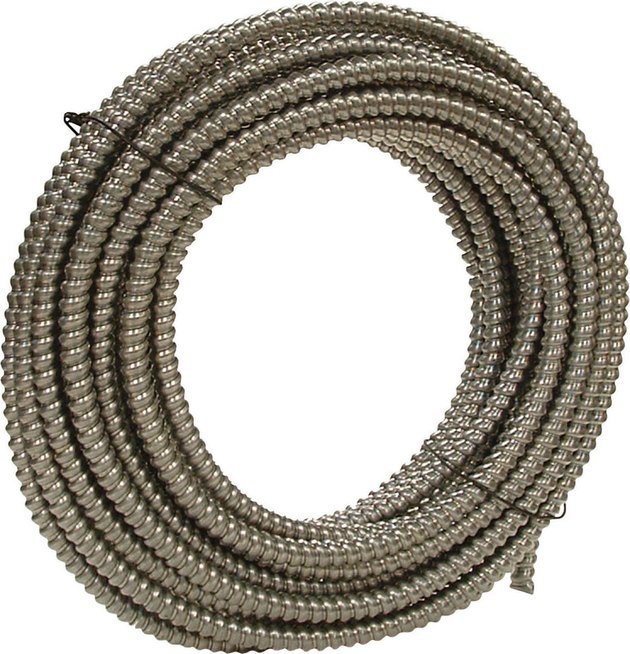

Install a switch box if the lights will be controlled by a new wall switch. Run cable from the source to the first fixture or the junction box or to and from a new switch box. If applicable, run additional cable from the junction box to each fixture location. Exposed cable must be metal-clad cable or protected by flexible metal conduit (Greenfield). Cable running inside wall cavities can be standard nonmetallic (NM-B) cable without conduit. Install the fixtures as directed by the manufacturer.

Step 5: Connect the Cable to Each Fixture

Connect the cable to each fixture using a cable clamp to secure the cable to the fixture. Wire the fixture following the manufacturer's wiring diagram, connecting the black wires to each other, the white wires and finally the bare or green ground wires. Use approved wire connectors to secure the wires.

Step 6: Install and Wire a New Wall Switch

Install and wire a new wall switch as applicable. Secure the cables to the junction box and source box and make the final wiring connections. Cover the junction box with an approved cover plate.

Step 7: Test the Lighting System

Restore power to the source circuit and test the lighting system.

Step 8: Repair Wall Surfaces

Repair wall surfaces and/or add access panel covers inside cabinets to conceal system components.

Types of Undercabinet Lighting

Options for undercabinet fixtures have expanded in recent years, but you can still find many of the popular standards. The lighting type has mostly switched from incandescent (and its cousins halogen and xenon) and fluorescent to LED lights.

  • Standard undercabinet fixtures​ are often marketed as "streamlined" or "low profile" and come in rectangular boxes and rigid strips that mount to cabinets with screws. They typically produce an even band of light, making them best suited for task lighting that illuminates the counter area under a wall cabinet with bright white light.
  • Puck lights​ are small, round fixtures about 3 inches in diameter and 1/2 to 3/4 inch thick. Early versions of puck lights typically had halogen or xenon bulbs and ran extremely hot (hot enough to melt chocolate stored in the cabinet space above the fixture), but today's versions use LED lights that run much cooler and offer the same flexibility of placement. The small pucks fit anywhere and can be surface-mounted or recessed into holes cut into cabinet boxes. Pucks cast a round beam of light and are often used for accent lighting against a backsplash or above kitchen cabinets.

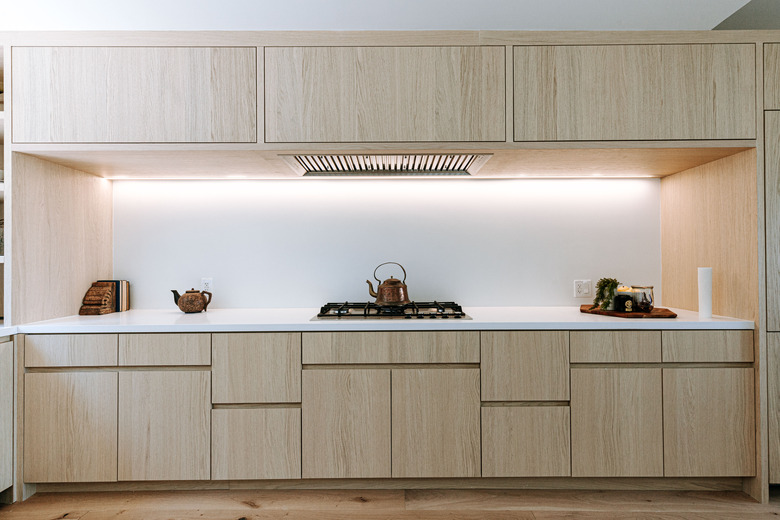

  • Strip or tape lighting​ is a flexible strip about 1/2 inch wide and 1/8 inch thick that contains a string of LED lights and very thin wiring. Strips are sold in precut lengths and in long rolls that you can cut to any length you need. This is the most streamlined, easy-to-hide type of undercabinet lighting, but it's not quite as good for bright illumination as many standard undercabinet fixtures. The strips have self-adhesive backing and are simply stuck in place. They are commonly used for accent lighting under or above cabinets or under bar countertops (this is a popular effect in restaurants and bars). They can also work as task lighting.
  • Rope lighting​ is clear plastic tubing containing tiny fairy lights and wiring. These are the same lights commonly used for decorative lighting on patios and in other outdoor locations. They add a warm, festive glow and are inexpensive and easy to install. In the kitchen, rope lights make the most sense for accent lighting above or below the wall cabinets.

Low Voltage vs. Line Voltage Undercabinet Fixtures

Undercabinet light fixtures are commonly available in either low voltage or line voltage types. Line voltage means that lights run directly on standard 120-volt household power, just like any appliance or lamp that plugs into a regular wall outlet. Most low voltage lights also use standard household power, but they include a transformer or a "driver" that steps down the voltage to about 12 volts for powering the lights.

From a user's perspective, there are really no significant practical differences between low voltage and line voltage systems. Low voltage does not mean lower energy use (a common misconception). So, it's usually not a factor in choosing one fixture over another. However, some types of fixtures, such as strip lights, are available only in low voltage styles.

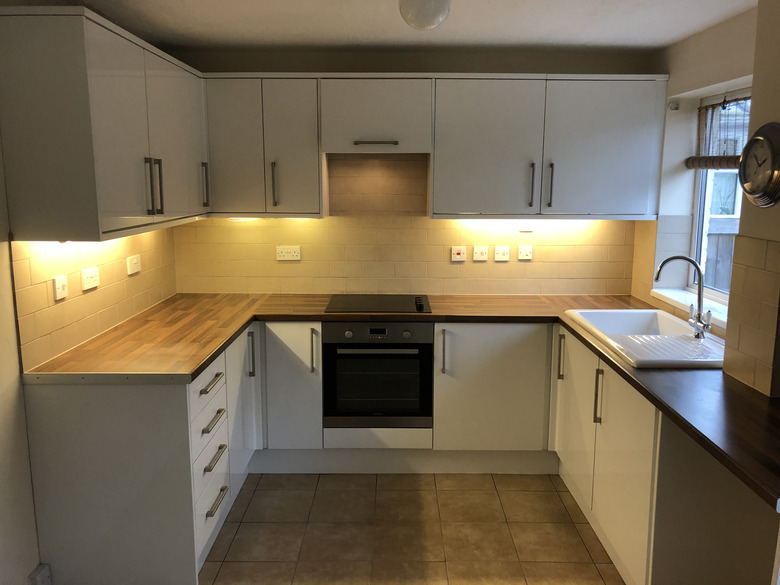

Image Credit: piovesempre/iStock/GettyImages

Hardwired, Plug-In or Battery Light Fixtures?

Hardwired undercabinet lights are connected directly to a household wiring circuit and can be set up for control using a standard wall switch or with a switch on the fixture itself. Wall-switch control is the primary benefit of hardwiring. It allows you to turn on all undercabinet lights or even all the kitchen lights from one switch, which can be a dimmer switch if you have dimmable bulbs. Another advantage is that there's no visible cord running from the lights to an electrical outlet.

The downside of hardwiring is that it involves a much more invasive, complicated and, in many cases, costly installation. It often includes wall repair and/or modification of cabinets. However, if you're remodeling your kitchen or building a new house, installation is relatively easy, so the benefits usually outweigh the drawbacks.

Plug-in undercabinet lights are the most popular choice when you're simply adding lights to a kitchen (not during a remodel). Installation is quick and easy and doesn't require an electrician or really any electrical knowledge. Since most kitchens have lots of outlets along the backsplash, there's usually a convenient outlet to plug into, and many fixtures can be linked so you only need one plugged-in cord.

Plug-in lights are controlled by a switch on the fixture or on a separate box that comes with the lighting system, which may include a dimmer. Another option is to plug the lights into a simple switch device that plugs into the outlet and lets you turn on all of the lights at one outlet location.

Battery power is the final option for undercabinet lights. This makes sense for single fixtures in remote and seldom-used locations, such as a wet bar or a liquor cabinet. Battery-powered light strips and the like adhere or are screwed in place, and the battery is inside the fixture. If you go this route, choose a fixture that's very energy efficient and that uses inexpensive and readily available batteries, not button batteries or other specialty types.

Tools and Materials Required

When installing plug-in undercabinet lights, you won't need many tools or materials other than a drill and Phillips bit for driving screws and duct tape, epoxy or hot glue to secure the cords to the cabinet and out of sight.

You'll also need a drill and Phillips bit when installing hardwired lights, and you'll need a few other things as well, including:

This list doesn't include tools you need to fix the walls after the installation is complete, which will vary depending on the amount of damage to the walls.
