How to Change the Battery of a Kidde Ionization Smoke Alarm 1275

Kidde produces the 1275 smoke alarm, an ionization smoke detector that uses a small and harmless amount of a radioactive element to detect traces of smoke. Kidde created the 1275 model to be used as a single standalone detector or wired as part of the series using an interconnected system. The model also contains a tamper-resistant frame. The detector is powered by a 120-volt AC adapter and contains a 9-volt backup battery that can be replaced as necessary.

Step 1

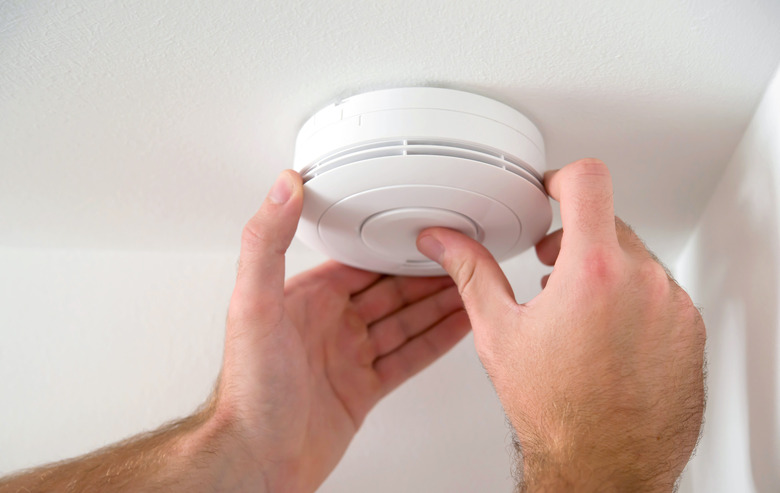

Rotate the alarm clockwise to disconnect it from the trim ring.

Step 2

Locate the AC power connector on the back. Squeeze the connector's locking arms together and pull gently to remove the connector.

Step 3

Open the battery door by pulling the latch.

Step 4

If a battery is already in the compartment, remove it. Unplug the connector from the battery.

Step 5

Attach the connector to the new battery.

Step 6

Insert the battery into the compartment.

Step 7

Replace the battery cover.

Step 8

Attach the AC power connector by inserting it into the slot until the locking arms click into place.

Step 9

Align the detector with the trim ring and rotate counterclockwise to lock in place.
