How to Support Hanging Cabinets on a Ceiling

Hunker may earn compensation through affiliate links in this story.

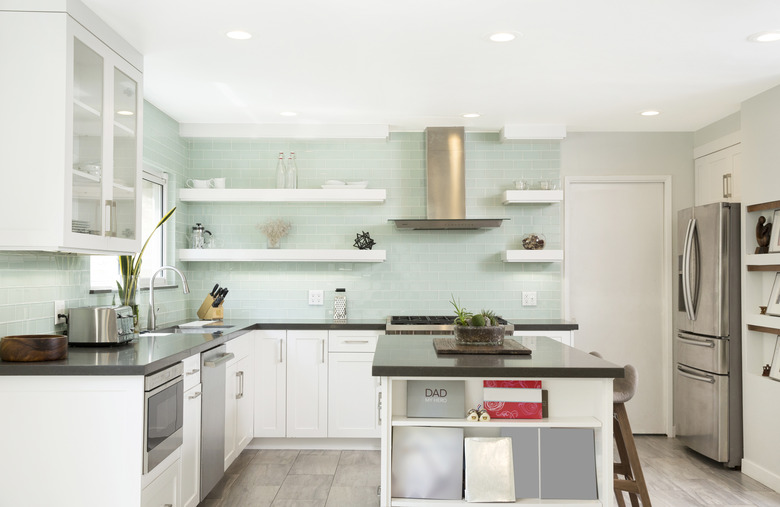

You need to make sure a hanging cabinet is well supported.
Image Credit: Westend61/Westend61/GettyImages

Free-hanging kitchen cabinets typically anchor to the ceiling above a kitchen island or peninsula. These cabinets help homeowners get maximum storage out of a small space in a kitchen. You can modify a set of wall cabinets to make them strong enough for a ceiling mount. Hanging the cabinets from a wooden ceiling beam or soffit is also critical for the integrity of this installation.

First: Have a Safety Plan

Hanging cabinets from the ceiling of a kitchen can be completed as a do-it-yourself project, but for safety's sake, you should have at least one person assisting you. That's because cabinets are heavy and awkward, and you'll need someone to stabilize the cabinet while you drill it into the ceiling. Consider building a sturdy brace or platform for the cabinets to sit on until the mounting procedure is complete for further safety and stability.

Strengthening Cabinets for Ceiling Installation

Unless you have purchased cabinets intended for ceiling installation, they'll need to be modified. If you take a cabinet that's meant to be mounted to a wall and try to screw directly through the top and mount it to the ceiling instead, you'll be drilling through weak particleboard. This significantly weakens the cabinet and it may not even be able to support its weight, much less the weight of any items you store inside it. Instead, you need to attach a piece of solid wood to the top of the cabinet to provide a sturdy and strong material to drill into.

Most cabinets have a "lip" on the top, which conveniently allows you to hide the cabinet hanging rail or mounting piece that you'll attach to the top of the cabinet. A 1x4 cut to the appropriate length should fit snugly behind that top edge on most cabinets. With this piece of wood flush against the back edge of the top of the cabinet, use a no. 6 or no. 8 screw to drill through the wooden wall-mount bracket on the back of the cabinet and into the side of the new top-mounted bracket. This wood-to-wood connection provides the greatest strength.

Finish attaching the new piece of wood to the cabinet by adding a screw through the top edge of the cabinet and into the wood on either side.

Measuring for Cabinet Placement

First, use a stud finder to mark the center of the wooden studs in the ceiling, as drilling into wood will provide the most support for the cabinets. Measure the distance from the back edge of the cabinets to the middle of the wooden brace you added. Transfer that measurement to the ceiling and snap a guide line to help you place the cabinets in the correct position before drilling.

Also, mark on the ceiling where the front edge of the cabinet will rest and use the stud finder to note whether wood lies behind this line as well. Add drywall anchors every six inches and draw a straight line out from each anchor so that you'll know where they are when screwing down this front edge.

Hanging Cabinets from Ceiling Procedure

Have an assistant move the first cabinet into position and fully support its weight until you've sunk all screws into the brace. Using screws specifically designed for mounting cabinets (such as GRK Fasteners' low-profile cabinet screws), drill up through the top of the cabinet, through the wooden brace and into the wooden stud in the ceiling. Place screws this way every six inches. Once these screws are in place, the cabinet is capable of supporting its weight.

Next, drill screws through the front edge of the cabinet and into the ceiling. This provides a small amount of additional stability and tightens up the front edge of the cabinet to prevent sagging. You should see the marks previously made to indicate the location of the drywall anchors underneath the cabinet edge. Predrill holes to avoid splitting the laminate and complete the installation by sinking these final screws.
