A Homeowner's Guide to Electrical Wire and Cable

Understanding the wire and cable used in a household electrical system is less complicated than you might think. For one thing, most household circuits use one type of cable, and standard cable is just a collection of individual wires inside a protective jacket. The few circuits that don't use standard cable probably use some type of low-voltage wire (such as doorbell wire). Where circuits don't use cable or low-voltage wire, they may include conduit—plastic or metal tubing that houses individual insulated wires—rather than cable. However, the wires that are run through conduit are generally the same wires that are found inside sheathed cable.

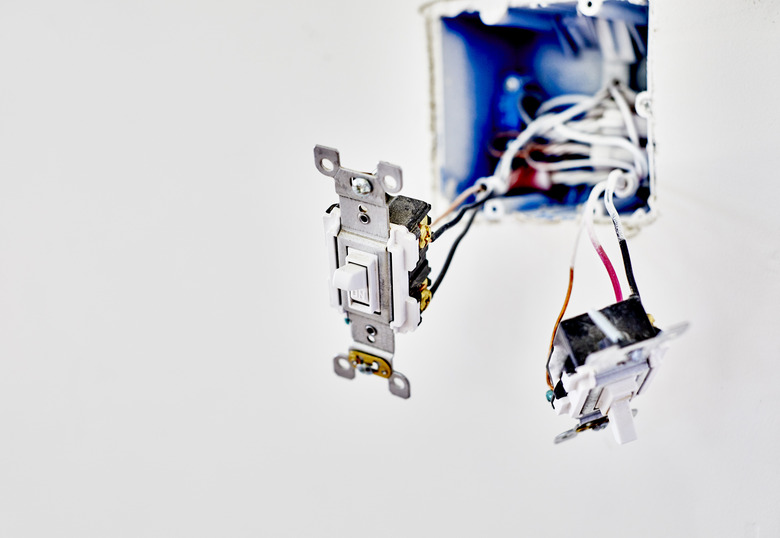

New light switches hanging from wires.
credit: wingedwolf/iStock/GettyImages
Residential electrical cable holds individual insulated wires that connect to switches and other devices.

Wire Materials

To an electrician (and code books) a "wire" is actually a conductor_, the metal part of a wire that conducts electricity. _Insulated wires have a nonconductive coating of plastic over the conductor, while bare wires (such as many ground wires) have no coating. Most conductors in new wiring are made of solid or stranded copper. Homes built roughly around the 1970s may have aluminum wire, and some may have copper-clad aluminum wire. Aluminum is still used today for some large wires, such as the heavy service cables that run from the utility grid to your house.

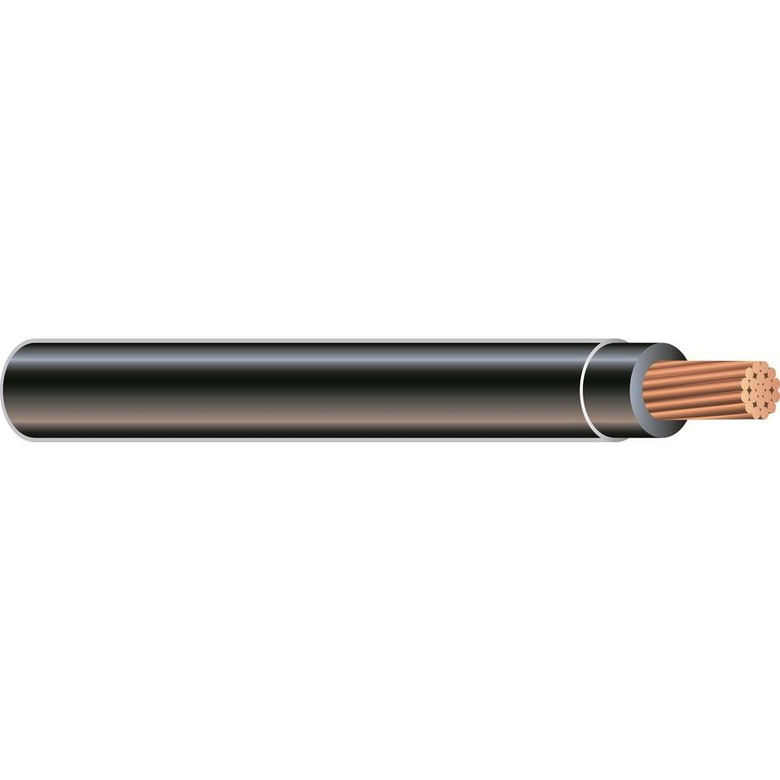

Insulated copper electrical wire.
credit: Southwire/Home Depot
Copper (stranded) insulated wire.

The important thing to remember about wire material is that all devices, such as switches, outlets and fixtures, must be compatible with the wire material. Standard devices are designed for copper wire and are labeled "COPPER," "CO" or "CU." Aluminum wiring requires special devices and connection methods for safe installation.

Wire Size and Capacity

Wire size is a measurement of the conductor's diameter and is given a number indicating its gauge_, or AWG, for the American Wire Gauge system. The lower the gauge number, the larger diameter of the wire. Gauge is important because it affects how much amperage (amps), or current, the wire can safely carry without overheating. This is called the _current-carrying capacity of the wire.

Standard household circuits for lights and outlets use either 14 AWG wire, which is rated for 15 amps, or 12 AWG wire, which is rated for 20 amps. Circuits for electric ranges often have 6 AWG wire (rated for 55 amps), and those for electric dryers may have 10 AWG or 8 AWG wire, rated for 30 and 40 amps, respectively.

NM Cable

Almost all of the circuits in a house are wired with nonmetallic (NM) cable, commonly known by the brand name Romex. It is a flexible cable containing two or more insulated wires and usually a bare ground wire wrapped inside a nonconductive outer jacket, or sheathing. Standard NM cable is designed for interior use, where the cable is protected from damage and moisture. Other types of nonmetallic cable are designed for other specific applications.

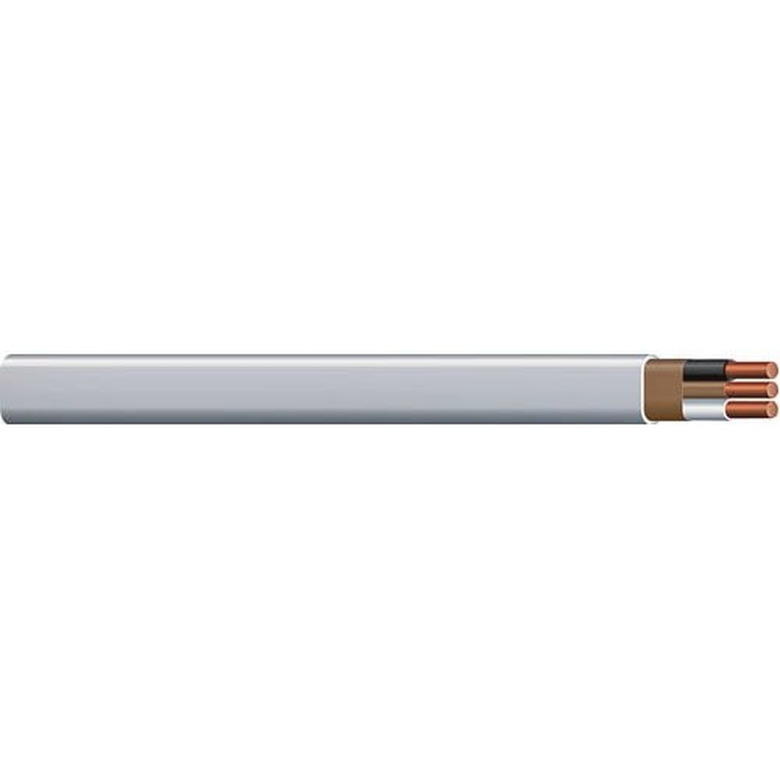

NM electrical cable.
credit: Southwire/Amazon
NM-B cable.

NM cable is stamped with lettering and numbers indicating various properties of the wires inside. New NM cable is labeled "NM-B;" the "B" indicates the current standard of wire insulation. Older "NM" cable has slightly less heat-resistant insulation and is no longer available (although it's fine to have in your house). The size and number of wires are noted by numbers:

  • "14-2" cable contains two 14 AWG insulated wires.
  • "14-2 w/Ground" (or "w/G") cable contains two 14 AWG wires plus a ground wire; the ground wire is not counted in the numbering system.
  • "12-3 w/Ground" cable contains three 12 AWG insulated wires and a ground wire.

UF Cable

Underground feeder (UF) cable is a special type of nonmetallic cable designed for outdoor use. It can be installed in wet or dry locations and can be buried directly in the ground, per local code requirements. UF cable uses a similar stamp system to standard NM cable. Rather than being contained in a loose "jacket," the individual conductors are imbedded in a solid vinyl/plastic material.

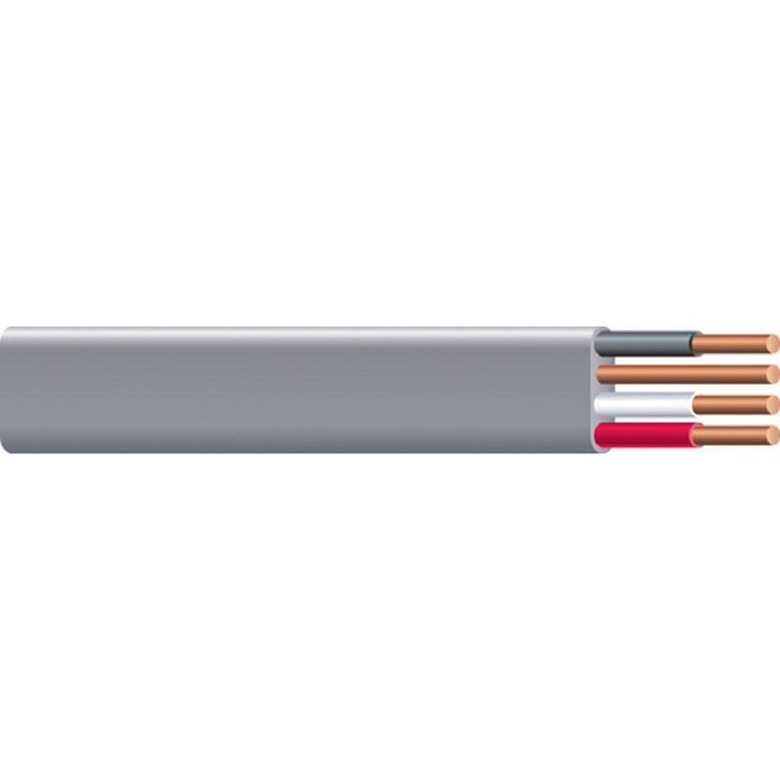

uf electrical cable
credit: Southwire/Home Depot
UF-B cable.

Flexible Metal Cable

Flexible metal cable consists of flexible metal tubing with preinstalled insulated wires inside. It is commonly used for short runs of cable that will be exposed, such as for connections to garbage disposers, hot water heaters or furnaces. The most common type of flexible metal cable used today is metal-clad (MC) cable, which contains two or more insulated wires plus an insulated ground wire. Armored cable (AC) is an older type of flexible metal cable that does not contain a ground wire. Instead, it has a thin bare wire called a bonding strip that bonds the cable to metal boxes or other fixtures at either end of the cable.

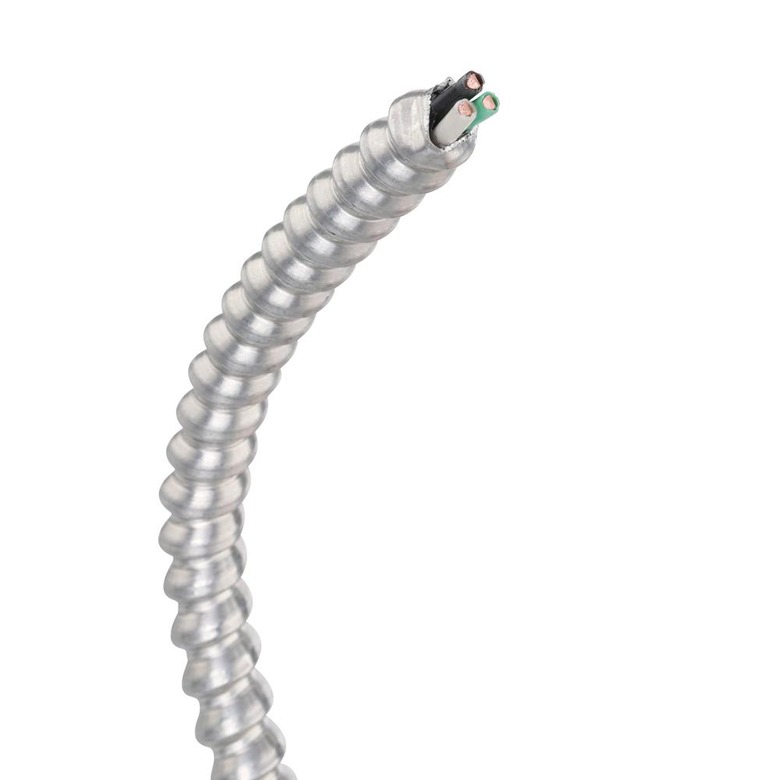

mc electrical cable
credit: Southwire/Home Depot
MC cable.

Low-Voltage Wire and Cable

Low-voltage, or LV, wire includes a range of household wire types designed for specific circuits with voltage ratings of about 50 volts or less (standard circuits use 120 volts). Most LV wire is thin, solid or stranded copper wire with insulation. Some are individual wires, while others are more like cable and contain multiple wires, with or without an outer sheathing. The most common types you're likely to see include:

  • Doorbell wire: also called bell wire; insulated wire, typically 20 AWG, for hard-wired doorbell systems, intercoms and the like.
  • Thermostat wire: cable containing five or more insulated wires for connecting thermostats to heating or cooling equipment.
  • LV lighting wire: two-wire insulated wire designed for low-voltage landscape lighting; can be buried directly in soil.
  • Telephone wire: cable containing four or eight insulated wires; traditionally used for connecting phone jacks inside the home.
  • Data cable: cable containing twisted pairs of insulated wire; the most common type in homes today is Cat 5 cable, which has four pairs of wires; used to connect phones and computer devices; carries a stronger signal than telephone wire.

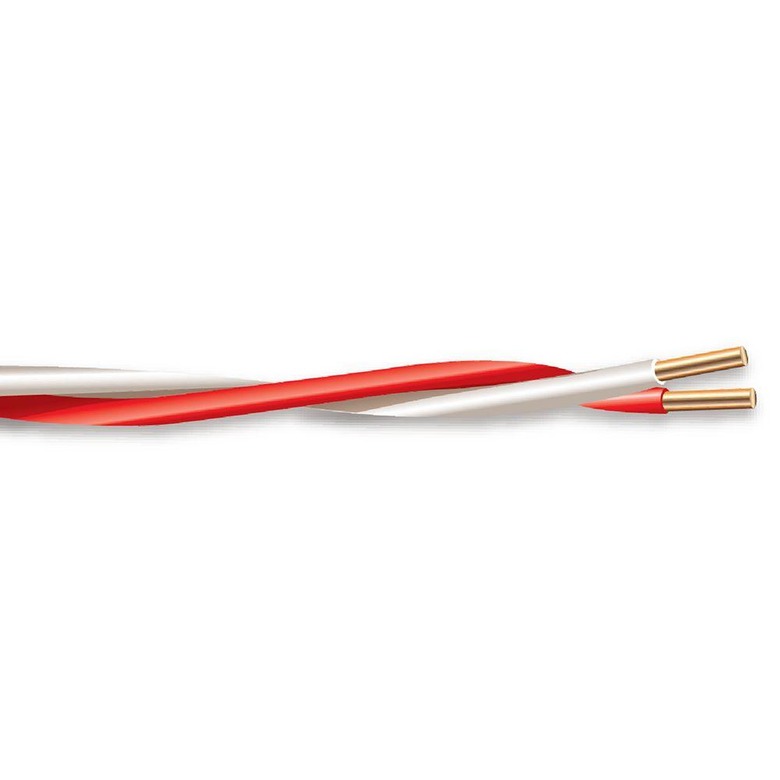

Doorbell electrical wire
credit: Cerrowire/Home Depot
Doorbell wire.

Insulated Wire

Wiring inside of conduit typically consists of individual insulated wires, which are sold in spools. This is the type of wire typically run inside conduit applications. Insulated wire uses the same basic materials and sizing system as the wires inside NM cable but is categorized by the specific type of insulation it has. The most common types of wire used in household systems are THHN and THWN. Each letter has a meaning:

  • T: thermoplastic; the primary insulation material.
  • H: heat-resistant; HH indicates a higher level of heat-resistance.
  • W: wet; insulation is suitable for wet locations.
  • N: nylon; insulation contains a coating of nylon for durability and resistance to oil and gas.
