How to Do Basic Bathroom Rough-In Plumbing

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • 3-inch PVC T-connector

  • Extra-large pipe cutter

  • PVC cleaner

  • PVC cement

  • 3-inch PVC pipe

  • 3-inch double-female PVC adapters

  • 3-inch PVC elbows, 90 degrees

  • Toilet flange

  • 3-inch-to-2-inch double-female PVC adapter

  • 2-inch PVC pipe

  • 2-inch double female PVC adapters

  • 2-inch PVC elbow, 90 degrees

  • Rubber 3-inch-to-1½-inch adapter with hose clamps

  • Screwdriver

  • 1½-inch PVC pipe

  • 3-inch-to-1½-inch double-female PVC adapters

  • Roof vent cap

Tip

If your existing sewer stack is not vented, use a rubber 3-inch-to-1½-inch adapter with hose clamps to extend the stack upward toward the roof of the home. Use pipe straps to hold the vent in place against structural elements. Run 1½-inch vent pipe up to a point about 12 inches below the roof, then convert back to a 3-inch PVC pipe to break through the roof to a height of at least 6 inches. Install a roof vent cap on the outside of the roof.

Warning

Never attempt to take on plumbing tasks that are beyond your capabilities. Broken pipes and fixtures can result in serious flooding and damage to your home. Call a professional if you are not certain you can handle the job.

Never install a toilet drain so that it intersects the sewer line before a sink, shower or tub. Backflow from the toilet can result in raw sewage overflow and contamination.

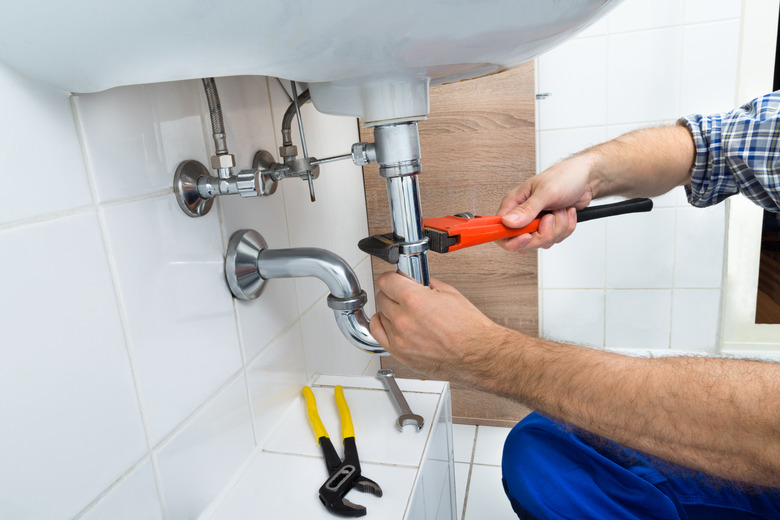

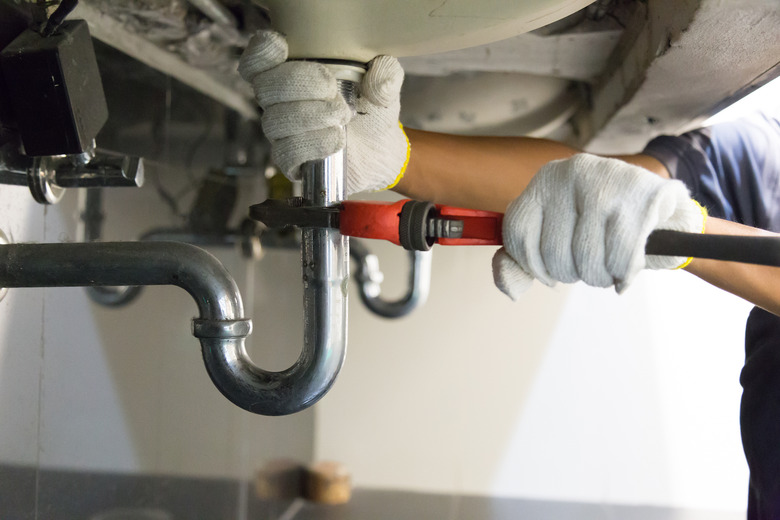

Bathroom drains all feed into a main sewer line.
Image Credit: Jupiterimages/Photos.com/Getty Images

Bathroom plumbing consists of fresh water lines, and drain and sewer elements. Toilets, sinks, tubs and showers all drain into the same sewer main, with different feeds. They are all fed hot and cold water through pipes that branch off in several directions toward each fixture in a bathroom. Rough-in plumbing involves bringing drain lines to the future bathroom and preparing them for individual connections that will occur when each fixture is installed. The process of doing basic bathroom rough-in plumbing requires some plumbing skills and a few specialized tools.

Step 1

Make a map of your rough-in plumbing layout for the bathroom. Locate the nearest main drain stack and chart the path the pipes will need to take to reach the bathroom, as well as the locations where they will reside once there. Factor in the location of your toilet, sink and shower/bath. Use your pencil and paper to draw the room and the array of pipes as well as the sizes required for each branch and ending.

Step 2

Install a T-connector to the main sewer stack. This branch of the drain pipe will allow your toilet, sink and shower/tub to drain wastewater out of the bathroom and into the sewer main. Use an extra-large pipe cutter to open the stack, and insert a 3-inch PVC T-connector in the space, below the floor level of the bathroom so that all the drains will run downhill toward it. Use PVC cleaner and cement according to the manufacturer's instructions to fit the pipe in place.

Step 3

Run a length of 3-inch PVC pipe to the toilet drain location, then use a 90 degree angle to make the turn upward to a level just below the bathroom floor. Connect each length of pipe with double female adapters and PVC pipe cement. Use another 90 degree elbow to turn the pipe horizontal again, then use a splitter to turn your single pipe into two.

Step 4

Install a length of 3-inch pipe into one open end of the splitter, and install a 3-inch-to-2-inch adapter into the other. Run a length of 2-inch pipe to your sink location and use a 90 degree angle to turn it upward. Install a last length of 2-inch pipe to a point about 18 inches above the bathroom floor. This will serve as your sink drain.

Step 5

Split your remaining 3-inch pipe into two lengths of 3-inch pipe. Use a 90 degree elbow to turn the pipe upward at the toilet installation location, and install a toilet flange on the top side of the flooring surface. The drain is ready for a toilet to be installed.

Step 6

Run the last length of 3-inch pipe to the shower/tub drain location and use a 90 degree elbow to turn it upward. Use a length of 3-inch pipe to bring it to the level of the floor, where it will serve as your shower/tub drain.
