How to Test a Briggs Coil

Hunker may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Keeping a good running engine depends on good fuel, mechanical and ignition systems. Problems can sometimes occur that point to a bad ignition system. On a Briggs and Stratton engine, check the ignition coil first. Most later models use Briggs and Stratton's magnetron coils—essentially a self-contained ignition system that derives its power from the magnets on the flywheel.Testing one of these coils constitutes a relatively simple process.

Advertisement

Step 1

Clip the spark tester to a clean metal part of the engine. Disconnect the spark plug wire from the spark plug, and attach the wire to the spark tester. Attempt to start the engine, and watch the spark plug tester. If you do not see a spark as the engine spins, proceed to Step 2.

Video of the Day

Step 2

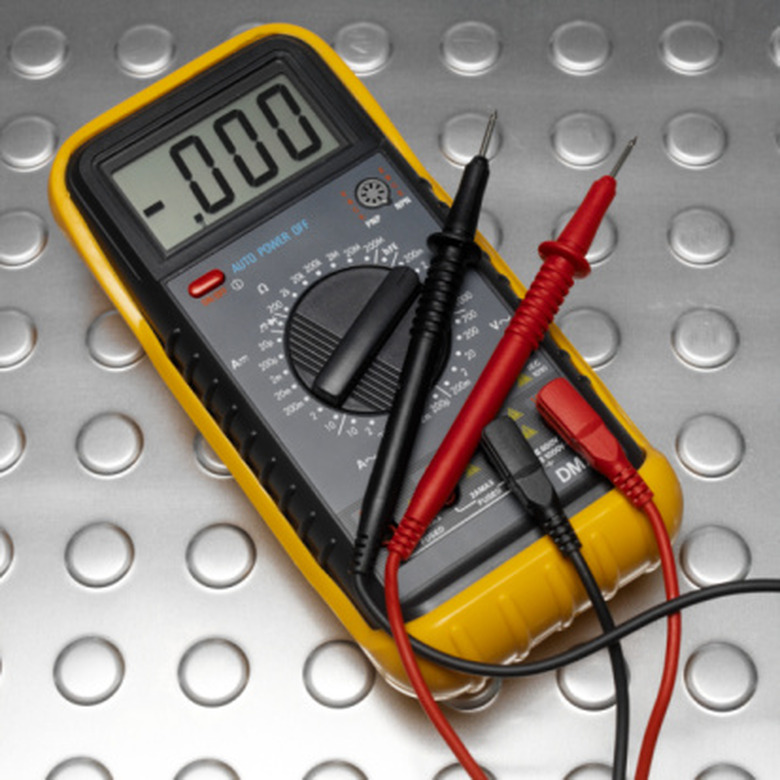

Connect the negative probe of the ohmmeter to a metal part of the engine, then connect the positive probe to the spark plug wire.

Advertisement

Step 3

Measure the resistance on the circuit you've just created. A normal reading ranges from 2,500 to 5,000 ohms. Anything higher or lower means that the coil has gone bad and requires replacement.
