How to Repair a Troy-Bilt Weed Trimmer

Hunker may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

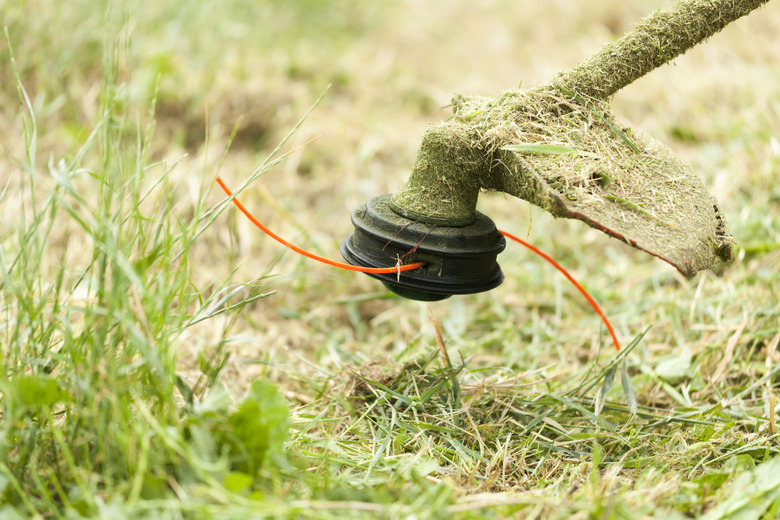

Image Credit: gece33/iStock/GettyImages

Many of the problems you encounter while using a Troy-Bilt weed trimmer can be attributed to a dirty air filter, a bad spark plug or a poorly adjusted carburetor. Some of the problems they can cause include the trimmer not idling properly, the engine not starting and the engine stalling while in use. Fortunately, cleaning the filter, replacing the plug and adjusting the carburetor are all things you can do on your own.


Clean the Air Filter

Step 1: Remove the Filter

Set the choke lever to "Position 2" and use a flat blade or T20 Torx screwdriver to unscrew the four screws keeping the air filter cover in place. Remove the air filter cover from the engine. Do not force the cover off, to avoid damage to the cover or engine. Turn the cover over and remove the air filter.


Video of the Day

Step 2: Wash It With Soap and Water

Use water and detergent to wash the air filter. Once the filter is washed, squeeze it to remove any excess water. Allow the filter to dry. If the filter is too dirty to clean, replace it.

Step 3: Lightly Oil It and Replace It

Add just enough SAE 30 oil to lightly coat the filter, and then squeeze the filter to ensure that the entire filter is covered. Place the air filter back into the cover, and then put the cover back in place on the engine. Tightly screw the four screws to secure the cover.


Clean the Spark Plug

Step 1: Remove the Spark Plug Wire

Wait for the trimmer's engine to cool. Once the engine is cool, find the spark plug on the trimmer's cylinder head. Grasp the spark plug wire and pull it to remove it from the spark plug.

Step 2: Unscrew and Remove the Plug

Use a cloth to clean the area around the spark plug. Use a 5/8-inch spark plug wrench to turn the spark plug counterclockwise, until the plug comes off.


Step 3: Set the Gap

Use a feeler gauge to set the replacement plug's terminal gap to 0.020 inches.

Step 4: Replace the Plug

Place the new plug on the cylinder head and use the spark plug wrench to turn the plug clockwise, until it is securely in place. Take care not to tighten it too much. Replace the spark plug wire by pushing it onto the plug until it snaps in place.


Adjust the Carburetor

Step 1: Warm Up the Engine

Start the trimmer's engine and run it at a high idle to allow it to warm up.

Step 2: Adjust the Idle Setting

Let the trimmer's throttle go. If the engine stops, use a #1 Phillips screwdriver to adjust the idle speed screw in the air filter cover. Turn the screw 1/8 of a turn in a clockwise direction to make the engine run leaner. This should increase the idle speed. If the engine slows down, turn the screw in the opposite direction.


Step 3: Fine-Tune the Idle

Start the engine and then release the throttle. If the engine stops again, turn the screw another 1/8 of a turn. Repeat this process until the engine runs idle instead of stopping.

You can make two other carburetor adjustments, using the low-speed and high-speed adjustment screws. Consult the manual for your model to make sure you do this correctly, because a misadjustment of the high-speed screw can damage the engine.
