Standard HVAC Duct Sizes

Hunker may earn compensation through affiliate links in this story.

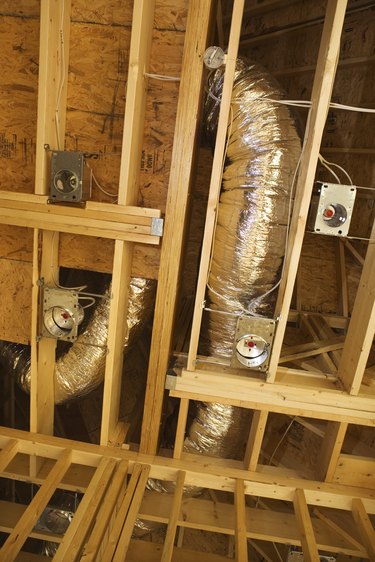

Image Credit: N-sky/iStock/GettyImages

HVAC duct sizes play an important role in keeping your heating and cooling system running correctly. The ductwork is a crucial HVAC component that affects how well your system heats and cools your home. The size of ductwork for such systems depends on the size of the unit or system installation design as well as heating or cooling space considerations. Local building and residential code requirements also dictate sizing in various installation scenarios.

Advertisement

Video of the Day

Basics of HVAC Ductwork

Ductwork is the component of an HVAC system that carries the heated or cooled air to the various rooms in your home. Ductwork is composed of various components and materials, including galvanized steel, insulated and non-insulated steel tubing, flexible metal, fiber, and flex ducting. Ductwork can be customized to meet any installation need and offers adaptors from one size to another as well as elbows, boots, collars, and reducers or increasers.

Importance of Proper Duct Sizing

The duct size must adequately handle airflow intake and return in order for an HVAC system to operate at optimal levels. It affects how much airflow goes through the ducts and the velocity of the airflow. If the ductwork is too small, it can overwork your HVAC system as it tries to keep your home at the desired temperature. Ductwork that's too large for your system decreases the airflow velocity, which means you won't feel the air blowing from your vents.

Advertisement

HVAC ductwork sizing is very complicated and takes in many factors. For this reason, homeowners may want to contact a certified HVAC technician or contractor to determine the optimal size of ductwork throughout the home or business environment that also measures up to code standards. Factors that go into sizing your ductwork include the cubic feet per minute (CFM), friction loss rate, total effective length of the ductwork, home square footage, and the ductwork material.

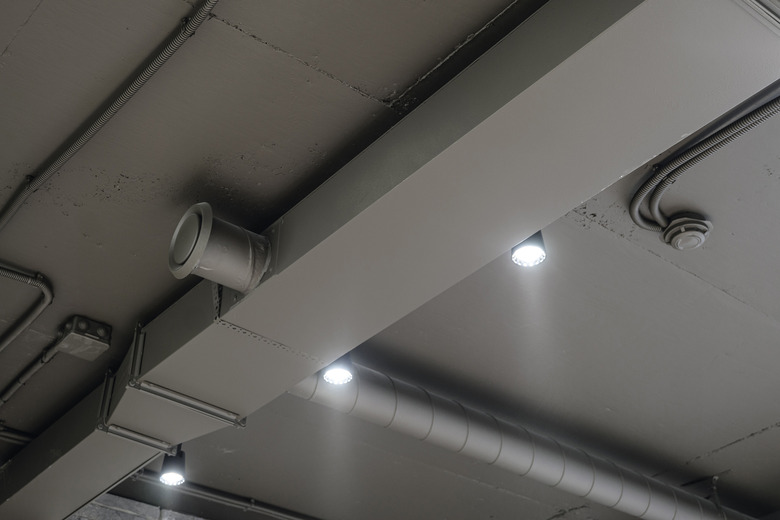

Rectangular HVAC Duct Sizing

Rectangular or square ducting comes in standard sizes ranging from 3 inches by 7 inches to 35 inches by 40 inches. Sizing is based on airflow needs per cubic foot per minute, as well as velocity. The HVAC model that you're interested in should offer information regarding the maximum airflow per cubic foot per minute, or CFM, to help you determine adequate duct sizes. The type of ducting you use, such as flex ducting or rigid ducting, also determines the velocity of supply and return air. Airflow is also affected by the length of straight portions of ductwork, as well as the number of trunks or branches in your overall duct design.

Advertisement

Round HVAC Duct Sizing

Round ducting comes in standard sizes ranging from 4 inches in diameter to just over 41 inches in diameter, with sizing also depending on airflow needs per cubic foot per minute and velocity. The size of your ductwork may also be affected by the design and construction of your home or business and the need to reduce the size of ducts coming from each vent or register in the system. Properly sized ductwork provides constant air velocity and air pressure throughout the HVAC system and into different rooms.

Advertisement
