How to Cut Aluminum with a Dremel

Hunker may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

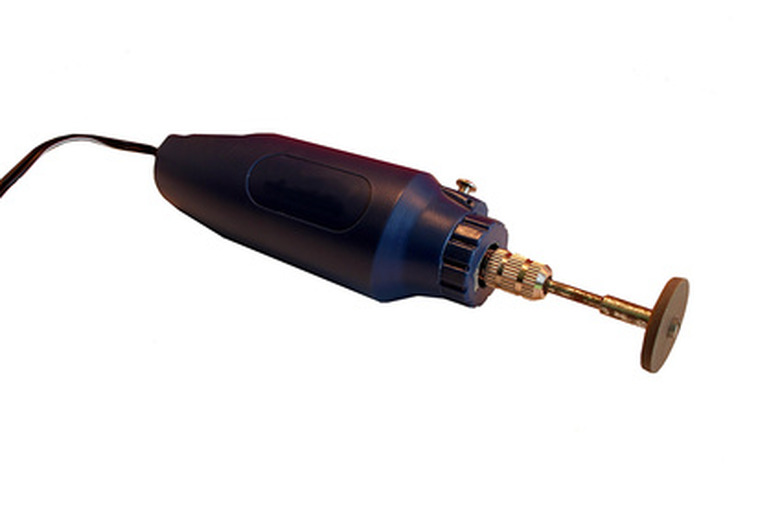

A Dremel tool cuts through aluminum very effectvely.

Dremel tools can be used for a number of purposes on a variety of materials. They are a must for any complete tool collection because of their versatility and their ability to cut with precision and detail. As long as you have the proper protection and the right cutting discs, you can use a Dremel tool to cut just about anything, including aluminum.

Advertisement

Step 1

Outline the cuts that you want to make with a permanent marker directly on the aluminum. The aluminum should be reasonably thin or the Dremel may not make a thorough division. Consider the type of cut you'll be making, such as a cut-out or a cut-through. Determine exactly where the cut should be made if you intend to make a precise cut on either side of the marked line.

Video of the Day

Step 2

Mount the cutting disc by removing the small screw from the tip of the Dremel and placing the disc on the spindle. Put the screw back on the spindle and tighten it to secure the disc. Tighten down the bit chuck by holding the bit spindle in one hand and the Dremel lock button.

Advertisement

Step 3

Don all protective gear. It is very important to wear eye protection and a respirator mask. Bits of aluminum dust will disperse during cutting and could severely damage your lungs and skin if the proper precautions are not taken.

Step 4

Hold the Dremel over the line you wish to cut. Turn the tool on high and lower it on the line. Cut on the side that will not be displayed as this tends to be the surface to receive the messiest edge. Do not cut all the way through the surface on the first run. Imagine that the cutting disc is a precise sanding tool and you are gradually working your way through the material layer by layer. Make a pass along your line once all the way through. Don't rush. If the motor slows, pull back so that your disc does not endure too much strain and break. If the disc breaks, replace it before trying again.

Advertisement

Step 5

Continue to make passes over your cutting line until the tool reaches the other side of the aluminum. Mount a smaller disc to make a more precise cut. Be careful not to let any shards fly away where they might stick in you or someone else. Do not touch any edges directly after cutting aluminum with a Dremel.

Step 6

Mount a grinding stone bit to soften the edges of the cut. Do not use too much force when running a grinding stone along the edges. Steady your hands, and with the flat side of the grinding stone perpendicular to the blunt edge of the cut, turn the Dremel up to full speed and slowly guide it along the edge. Follow up with a sanding bit to smooth the edge further.
