How to Change a Fuse Box to a Circuit Breaker

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • Electrician's pliers with insulated handles

  • Screwdriver with insulated handle

  • Electrical tape

  • Rubber mat

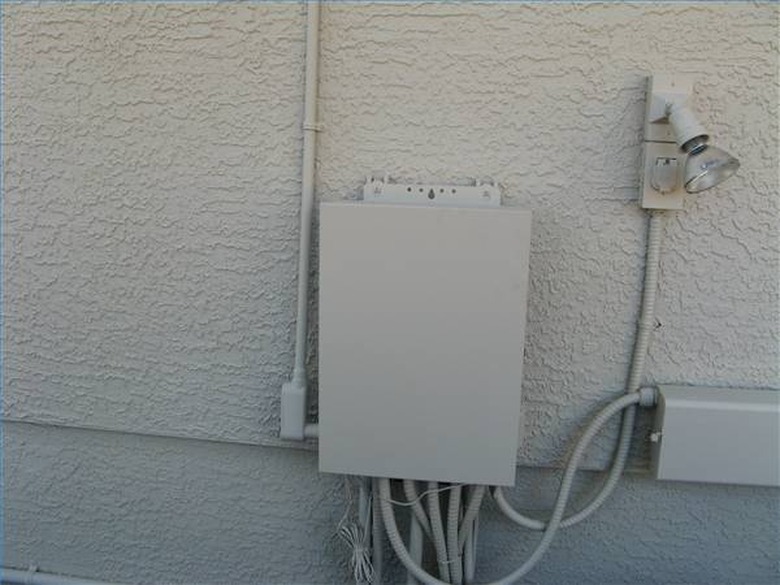

Breaker Box

Changing a fuse box to a circuit breaker is a challenging task for the average do-it-yourself person. The reason is that the wiring has to be worked hot. In other words, there is no way to shut off the electricity coming into the fuse box unless you ask the utility company to pull the meter. It is important that you understand electricity and are comfortable in working with it. It might be wise to ask a licensed electrician to work with you.

Step 1

Remove all of the fuses from the fuse box. This cuts off the electricity that feeds the circuits in the house.

Step 2

Disconnect all circuit wires in the fuse box.

Step 3

There should be two hot wires and one neutral wire running into the fuse box from the meter. These will be the larger wires with the neutral wire being either white or bare copper. Disconnect the neutral wire first and if it has a covering, wrap electrical tape around the bare portion of the wire. Make three wraps around the wire leaving enough tape on the end to keep someone from touching bare wire.

Step 4

Disconnect one of the hot wires being very careful not to touch bare wire or any metal. Use a screwdriver and pliers with insulated handles.

Step 5

Immediately tape the end of the wire after it is disconnected. Disconnect the second hot wire and tape the end.

Step 6

If the fuse box is mounted outside of the house, there should be some sort of ground wire in the box that runs to a rod driven into the ground. Disconnect this wire.

Step 7

Remove all cable clamps and conduit connections from the fuse box. Detach the fuse box from the wall and carefully pull out the wires.

Step 8

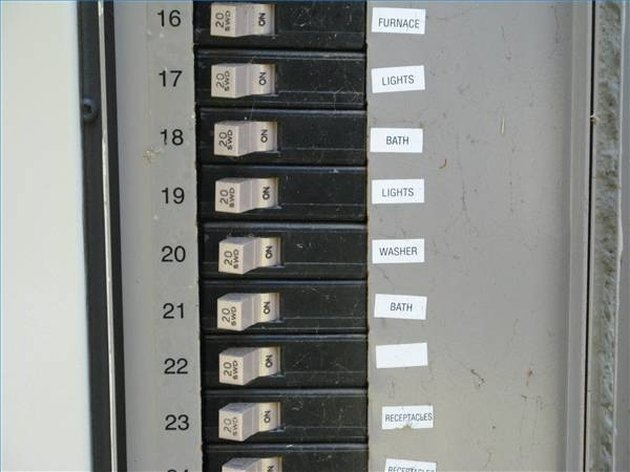

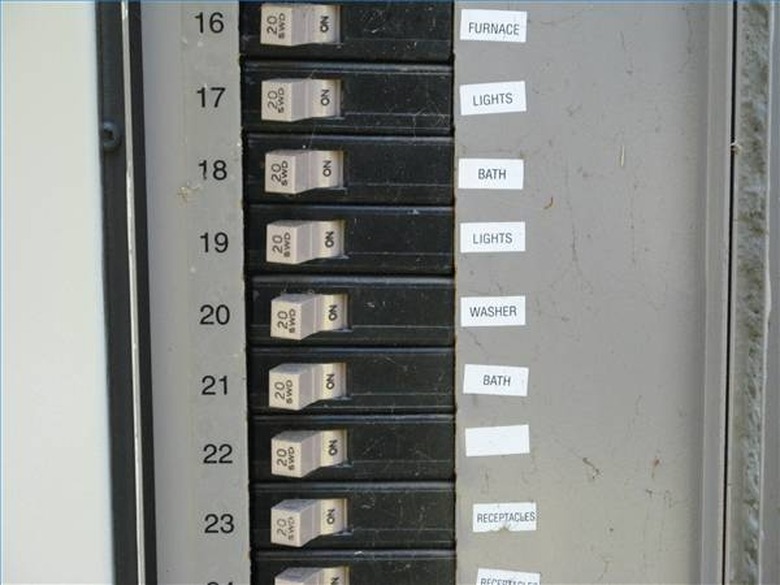

Inside Cover of Breaker Box

Remove the inside cover from the breaker box and determine where wire entries need to be made. Punch out the appropriate knock-outs. Be very careful not to remove knock-outs where holes are not needed.

Step 9

Mount the breaker box securely onto the wall.

Step 10

Thread the disconnected wires into the box and reattach all cable clamps and conduit connections.

Step 11

Somewhere in the breaker box, there will be one or two neutral/grounding bus bars with a row of connections. Loosen the screw on one of the connectors, slide the ground wire into it and tighten the screw.

Step 12

In the top of the breaker box, there will be two large connectors. Carefully take the tape off one of the black wires and connect it to one of the connectors. Repeat this process with the other black wire and the other large connector. Connect the neutral wire to one of the neutral/ground bus bar connectors.

Step 13

Connect all of the white wires from the house circuits to the neutral/ground bus bar.

Step 14

Connect each black wire to a separate breaker and snap the breaker into one of the hot bus bars. .

Step 15

Turn on all of the breakers one by one. If a breaker snaps off, there is a bare wire touching metal or another bare wire. It is also possible that a connection is not made correctly. Retrace your installation steps and see if you can find the problem. If you are unsuccessful, you will need to call an electrician.

Tip

Buy the brand of breakers that corresponds with the manufacturer of the breaker box. Breakers of one brand are not interchangable with other brands of breaker boxes.

Warning

Do not attempt this job when it is raining or the ground is wet. Lay a rubber mat on the ground or floor when working on the fuse and breaker boxes. Consult all local and national electrical codes before beginning this job.
