How to Troubleshoot No Power & Circuit Breaker Not Tripped

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • Screwdriver

  • Voltage meter with continuity checker

Warning

Working with electricity is extremely dangerous and accidents can result in death or serious injury. Only certified electricians should attempt this procedure.

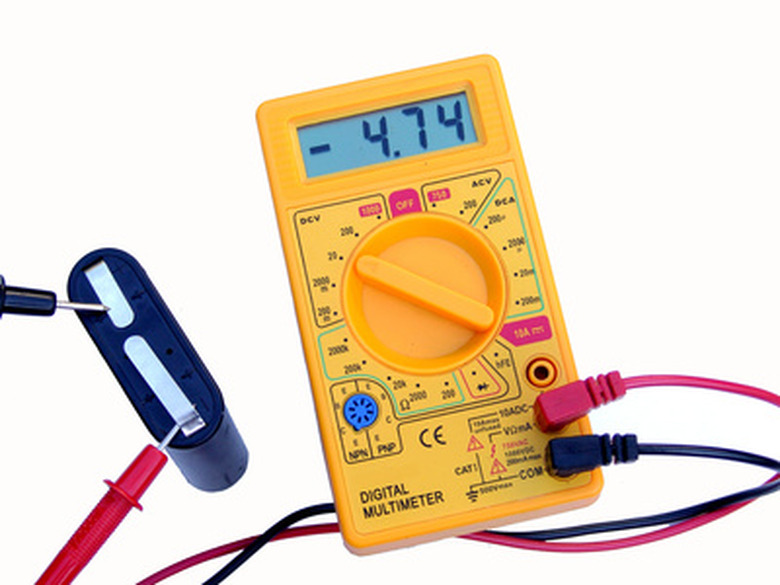

A voltage meter is your primary troubleshooting tool.
See More Photos

You checked to make sure the appliance is plugged in, the device is switched on and the circuit breaker is not tripped, and yet the appliance is not receiving power. It is a rare occurrence, which is one reason why a situation where there is no power and the circuit breaker is not tripped can be puzzling at first. A circuit breaker, the connecting wire and appliance, however, are all components of a simple circuit that you can troubleshoot with a standard voltage meter.

Advertisement

Video of the Day

Step 1

Remove the screws securing your panel box cover and set the cover aside.

Step 2

Check for voltage at the wire connection terminal on the circuit breaker in question. Verify the voltage is correct. No power at the connection terminal while the circuit breaker is in the On position indicates a defective circuit breaker.

Advertisement

Step 3

Remove the receptacle cover from the outlet without power. Check for voltage at the wire connection terminals on the side of the receptacle. Verify the voltage is correct. No power at the connection terminal indicates a break in the wire. Power at the connection terminal but not at the receptacle plug indicates a faulty receptacle.

Advertisement

Step 4

Switch the main circuit breaker to the Off position. Disconnect the wire from the circuit breaker and the receptacle. Twist the set of wires together at the receptacle box and check the wires at the panel box end with the continuity checker on your voltage meter. No continuity indicates a break in the wire.

Step 5

Replace all covers and restore power after making the necessary repairs.
