How to Wire a 240 Volt Portable Generator Plug

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • Four-conductor standard electrical cable

  • NEMA L14-30 plug

  • Knife

  • Wire stripper

  • Screwdriver

  • Ruler


A diagram of a NEMA L14-30 plug is available on Page 10 of the first article listed under "References." A picture of a NEMA L14-30 is available on the second reference article.

The standard 240-volt portable-generator plug is a four-wire NEMA L14-30 plug that can be found in most hardware stores. The four wires consist of two "hot" wires (which are normally black but are sometimes red); a "neutral" wire (normally white); and a ground wire (usually green). To make your installation easier, check your generator owner's manual to ensure that a NEMA L14-30 will fit.


Video of the Day

Wire the Plug

Step 1

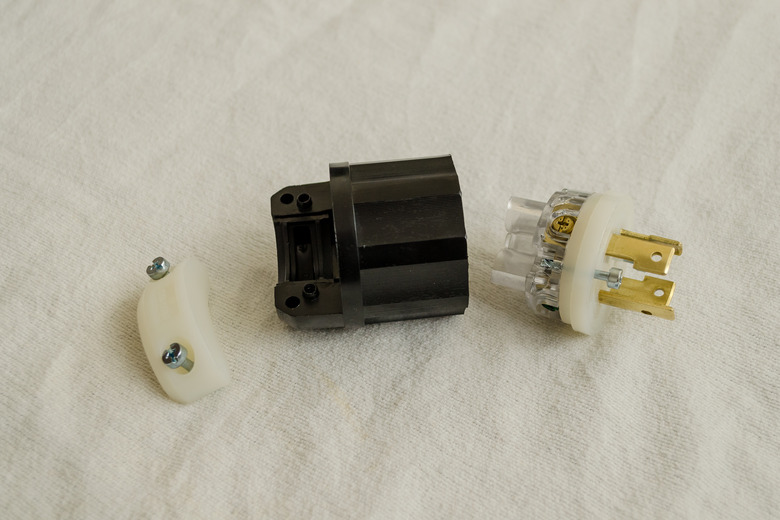

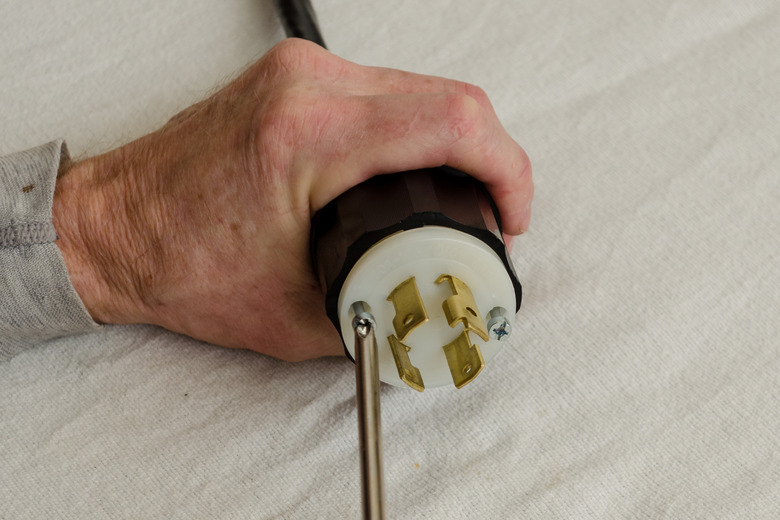

Remove the screws from the plug and remove the cover.

Step 2

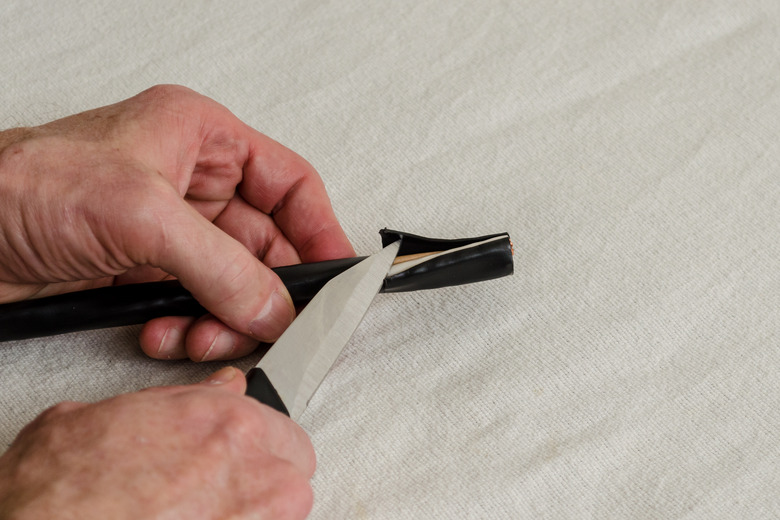

Use the knife to remove the outer covering on the cable, so the four inner wires are 1 1/2 inches in length.


Step 3

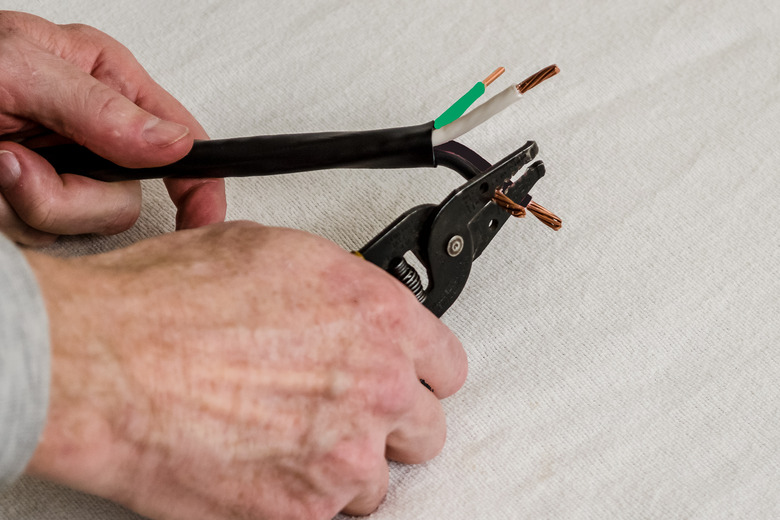

Use the wire strippers to strip a half-inch of insulation off each of the four wires.

Step 4

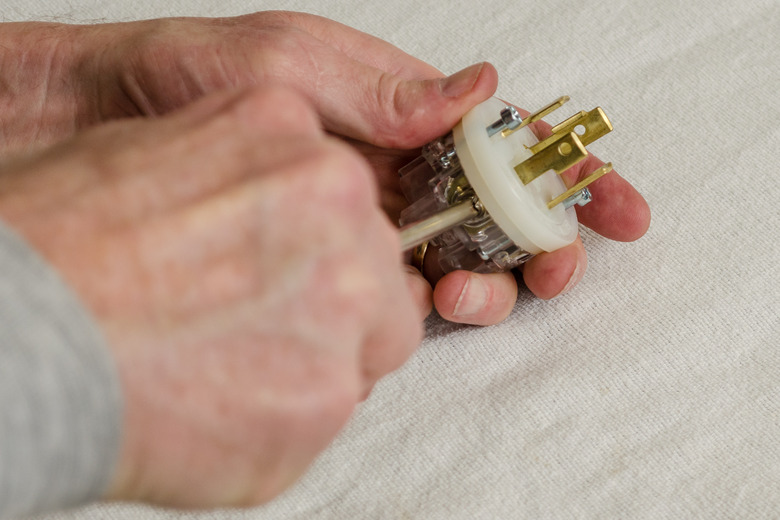

Loosen the screw connectors on each of the four prongs of the plug with a screwdriver.


Step 5

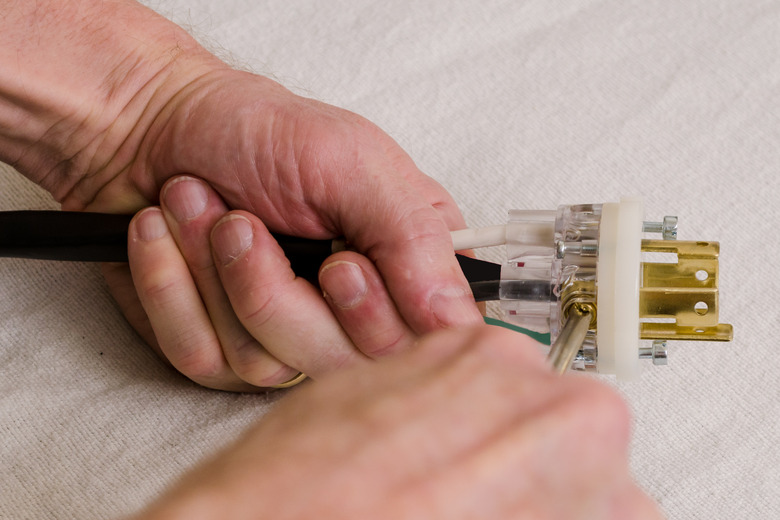

Place the black wires under the screw connectors on the "hot" prongs and tighten them with a screwdriver.

Step 6

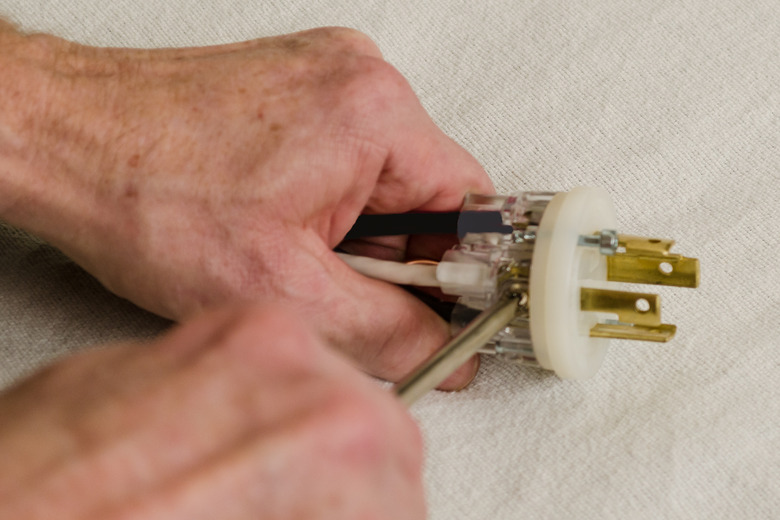

Place the white wire under the screw connector on the "neutral" prong and tighten it with a screwdriver.


Step 7

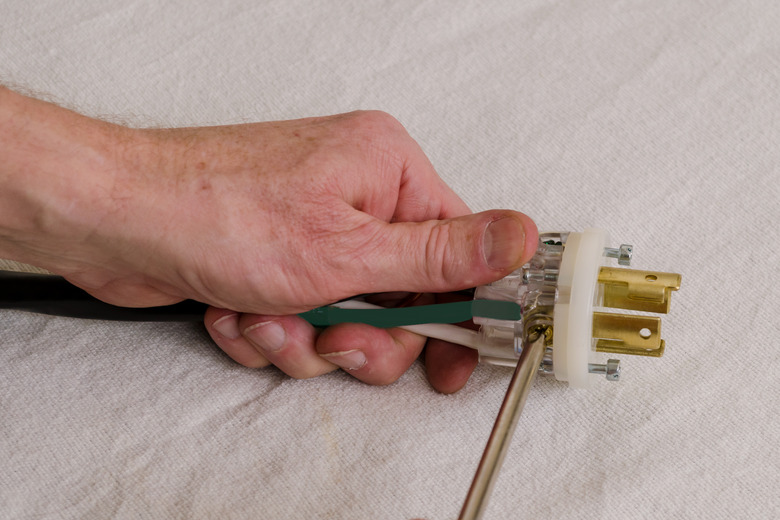

Place the green wire under the screw connector on the "ground" prong and tighten it with a screwdriver.

Step 8

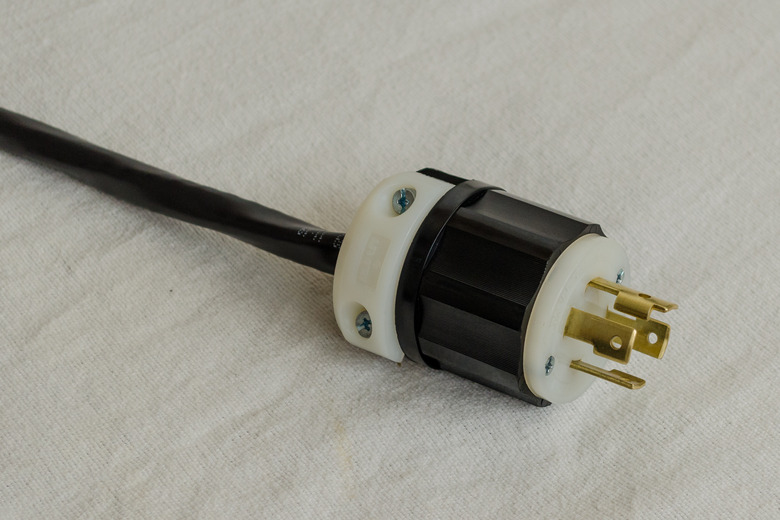

Replace the cover and tighten the screws with a screwdriver.
