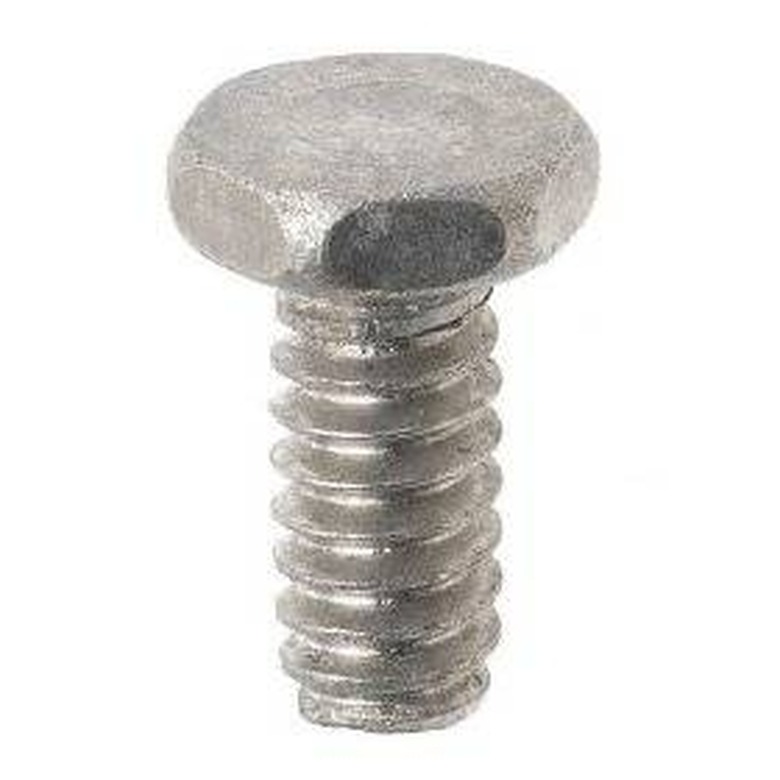

How to Remove Stripped Bolt Heads

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • Screwdriver

  • Penetrating Oil

  • Triangular File

  • Cold Chisel

  • Locking Pliers

  • Screw Extractor

Removing a screw or bolt is usually a straightforward and agreeable procedure. Occasionally, though, the head will shear and what was a simple task becomes a frustrating chore. It's time to put your problem solving skills to work. Assess the situation, determine a solution, and apply the fix in the most effective manner. This article will explain how to remove stripped bolt heads.

Advertisement

Video of the Day

Step 1

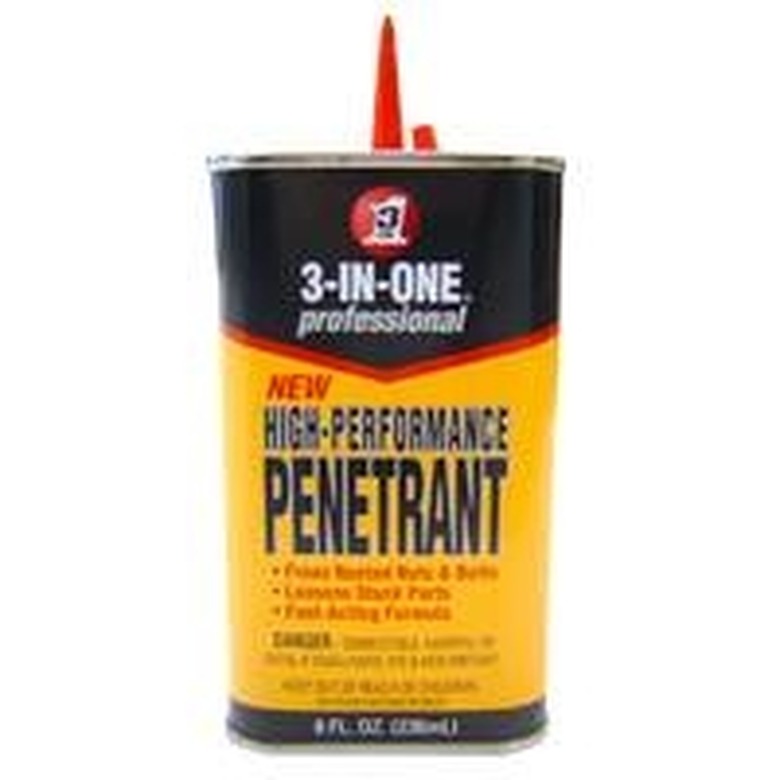

Penetrating Oil
See More Photos

Try a few drops of penetrating oil if the bolt is frozen from rust or corrosion. Tap the bolt a few times to break the bond. Apply the oil, and tap the bolt a few times to help the oil penetrate. Give the oil a few minutes to work before proceeding.

Advertisement

Step 2

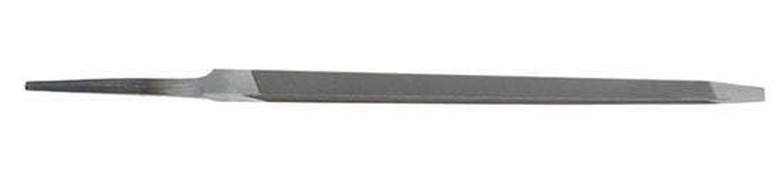

Triangular or 3-Cornered File
See More Photos

Use a triangular file to cut a new slot across the bolt head. Remove the bolt slowly with downward pressure.

Advertisement

Step 3

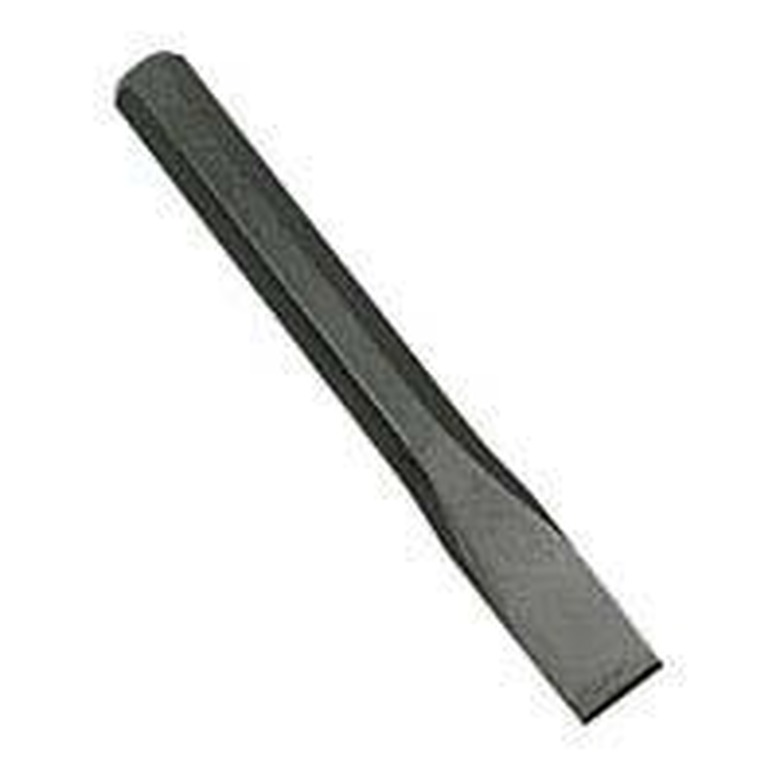

Cold Chisel
See More Photos

Place a cold chisel across the screw or bolt head. Strike the chisel firmly with a hammer--one hard blow works best. The tip of the chisel will wedge itself into the head. Turn the chisel with a wrench to unscrew the bolt.

Advertisement

Step 4

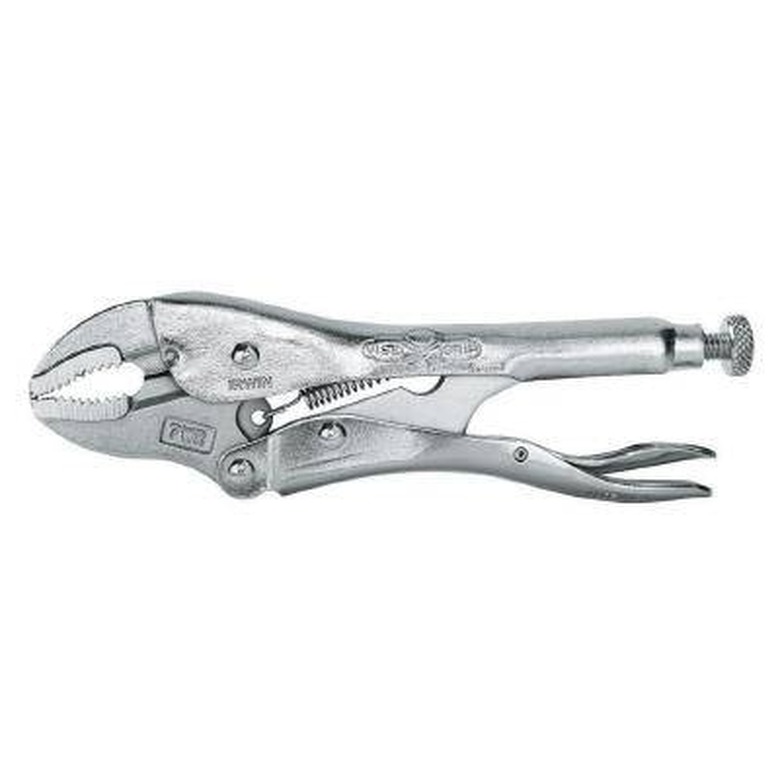

Irwin Vise-Grip Locking Pliers
See More Photos

Clamp the stripped bolt head securely with locking pliers. Twist the pliers to remove the bolt. Be careful not to turn the pliers off angle because you'll risk twisting the head off while leaving the screw shank intact.

Advertisement

Step 5

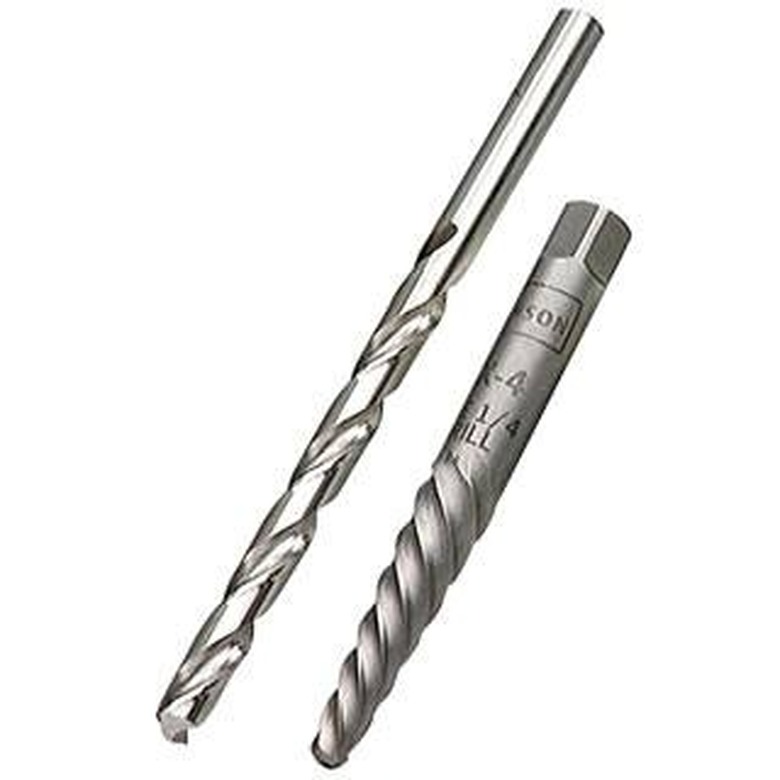

Irwin Spiral Extractor and Drill Bit
See More Photos

Drill through the head of the bolt into the shank. Tap a screw extractor into the hole so that it bites into the metal. Twist the screw extractor to remove the bolt.
