How to Form a Foundation for a Quonset Building

Hunker may earn compensation through affiliate links in this story.

Things You'll Need

  • Tape measure

  • Shovel

  • 20 nails, 3 to 5 inches in length

  • 16 wooden stakes, each 12 inches in length

  • Hammer

  • String (enough to run the perimeter of your Quonset hut)

  • Marking paint

  • Level

  • 2" by 6" forms (four)

  • 4 strands of rebar, each 10 feet long

  • Gravel

Tip

You should make sure that the ground you’re placing your Quonset hut on is level. You may have to bring in fill dirt and compact it before you begin forming your foundation.

If you need to re-set your stakes after measuring diagonally to make sure your forms are squared, be sure to re-measure between the stakes after you’ve moved them to make sure that they are still in a formation that matches the measurements of your Quonset hut.

If you are in an area where temperatures drop below freezing you will need to dig your footings deeper than the frost line. Instead of 12 inches down you’ll want to go down 32 inches when digging your trench. You will also want to double the amount of rebar you place in the footing part of your foundation, putting one row of rebar after you’ve poured in 1 foot of concrete and then place another row of rebar strands after you’ve poured in another 1 1/2 feet of concrete.

If your Quonset hut measures more than 10 feet by 10 feet, you’ll need to rent a transit and use it instead of a level to make sure that your forms stay level as you set them.

If you want your Quonset hut to have electricity, you'll need to tie a copper grounding wire to one of the strands of rebar (one of the bottom strands, if you'll be pouring a 32 inch footing with two rows of rebar) and run the copper wire up so that it protrudes above the surface of the concrete. This will give your electrician a place to put the electrical box.

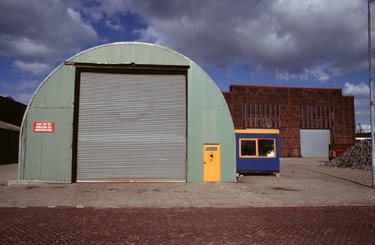

Around since World War II, Quonset huts have always been a convenient solution when there's a need for sturdy, lightweight storage or shelter that can be quickly assembled. Because Quonset huts are prefabricated, all you need to set one up is a place to put it. Form a simple foundation and slab and fill your forms with concrete. You'll have the ideal base for your new storage shed.

Advertisement

Step 1

Measure the dimensions of your Quonset hut using the tape measure.

Step 2

Mark out the measurements of your Quonset hut on the ground where you'll be placing the shed. For instance, if your Quonset hut measures 5 feet by 7 feet, you'll pound a metal or wooden stake into the ground where one corner of the shed will be, measure 5 feet over and pound another stake into the ground; measure 7 feet from the second stake and pound another stake into the ground; measure 5 feet from the third stake and pound the final stake into the ground so that you have formed a rectangle the exact size of your Quonset hut.

Advertisement

Step 3

Measure inside the rectangle from one corner to the diagonally opposite corner and make note of the measurement. Do this again from the opposite corner to its diagonal opposite, so that you've measured over an invisible "X". Both measurements should be the same. If they are the same you know that your rectangle is perfectly square and you can continue forming your foundation. If the two measurements don't match, you'll need to adjust the wooden stakes until you get the same measurements when measuring the inside of your rectangle diagonally.

Step 4

Attach the string to one of the stakes, a few inches above the ground, and run it to the next stake, wrapping it around the second stake to secure it. Continue running the string to each stake and wrapping it once or twice around the stakes, finishing up at the stake you started with. Tie the string off and cut it. This creates a visible form for your rectangle.

Advertisement

Step 5

Paint a line on the ground with the marking paint, using the string as guidelines. Spray the paint directly over the string, pointing down at the ground, so that your paint line is exactly where your string line is.

Step 6

Remove the string from the stakes, but leave the stakes in place as guidelines as you dig the footing.

Step 7

Dig a trench 7 inches wide and 12 inches deep around the inside of your painted guidelines.

Step 8

Remove the stakes from the four corners of your foundation.

Advertisement

Step 9

Pour 4 inches of gravel into the part of the foundation that will be the slab. You won't need any gravel in the trench around the perimeter. Spread the gravel out evenly.

Step 10

Set the stakes, three to each side of the foundation, pounding them into the ground just outside the painted guideline.

Step 11

Attach the 2" by 6" forms to the stakes with nails so that the forms are suspended 4 inches above the ground. Use the level to make sure that you are keeping the forms level as you go. The forms can (and most likely will) run longer than the sides of your foundation. You just need to attach the forms at the corners, butting the end of one form up against the side of the previous one you set and pounding a nail into them to hold them together.

Advertisement

Step 12

Use the four remaining stakes to reinforce the corners of the foundation by pounding them into the ground on the outside of the foundation line at the corners and then nailing them to the forms.

Step 13

Pack the dirt that you have left from digging the trench underneath the forms. Pack it tightly so that it will keep the concrete from running out when it is poured.

Step 14

Pour 1 foot of concrete into the trench before placing the rebar strands into the footing. Place the rebar end to end, cutting it if necessary to make sure you have a continuous length of rebar running through your footing.
