Things You'll Need

  • Lumber (cedar, preserved hardwood or engineered wood) for rails and stiles

  • Louvers or half-inch-thick slats to use to cut them

  • Jig or table saw

  • Router or back saw, drill and mortise form for mortise and tenons

  • Wood glue or construction adhesive

  • "T" or corner square

  • Corner wood clamps

  • Safety glasses

Tip

Sometimes you can fabricate large Bahama shutters from other materials. If you're doing a porch, look around for some unfinished louvered closet doors at your local home center. Be sure to seal ends of unfinished wood and to finish with exterior-grade paint or spar varnish, and use hardware that will support your large shutters.

Be sure to hang your shutters with hardware that has been designed for use with top-hung shutters. The weight load is very different than with side-hung shutters.

Be sure to sand exposed corners of wood so that paint or varnish does not "break" and wear away more quickly at the corners than on the flat surfaces.

Warning

Always wear safety glasses when using tools, cutting wood or painting to avoid eye damage from flying splinters or splashing solvents.

Make Bahama Shutters

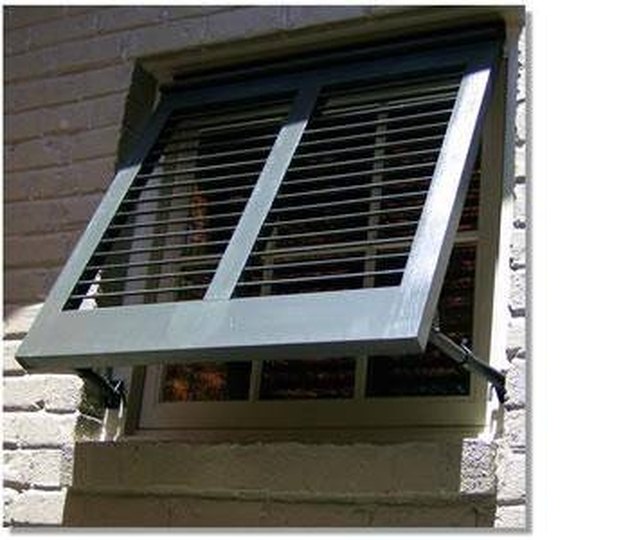

Bahama shutters give maximum shade and ventilation--a great combination if you live in a tropical or desert area where the sun is bright and the days are hot. While bright colors make them decorative, these shutters are also strong enough to shelter windows during foul weather. With some homework and added expenditure, skilled homeowners can build their own hurricane code-compliant shutters.

Advertisement

Step 1

Plan ahead and simplify your task. If you are planning to build Bahama (also called Bermuda or "Tropical" shutters) to be used as storm shutters, check with your local building codes to find out what type of wood, hardware and construction specifications you must meet before beginning. Florida has a statewide code for these exterior shutters, but in some areas, cities publish these requirements. In all cases, Bahama shutters must be designed to fit inside the building frame over the window frame so when closed, the surface of the shutter forms a single surface with the building face.

Step 2

Design your shutters and estimate materials. Bahama shutters are fixed louvered shutters consisting of one or more mullions (panes or, in this case, sets of louvers). They are hinged at the top to tilt open and pull closed into the window opening. This allows them to ventilate without being lifted by wind. Take measurements of the insides of windows to be fitted with shutters. Then, find hinges and braces to hold your shutters open where storm shutter hardware is sold. Use one-by-two to one-by-four-inch wood, depending on the overall size of the finished shutter. Figure the angle of the louvers to match the angle of the shutter when it's propped all the way open. This way, light is allowed in and occupants can have a fairly unobstructed view outside when the shutters are open.

Advertisement

Step 3

Frame the shutter. Cut rails (vertical edges) to run the entire height of the window and stiles (the horizontal pieces of the frame) to fit between outside rails. Be sure to add at least an inch on either side for tenons. If you plan more than one mullion, cut them to fit between the outside stiles, not alongside them, again adding a total of one inch for each tenon. Use wider boards for the bottom stile larger shutters to provide more stability for mullions.

Step 4

Prepare mortises on the outer rails and tenons on the outer stiles using a router or a backsaw, drill and mortise tool. Make a line of mortises up the inside of each rail to fit the ends of the louvers (fit the ends of the louvers into the mortises). Carefully measure and mark before cutting to ensure level louvers. Clean up corners with a chisel and mallet or sandpaper. Dry-fit pieces as you go, gluing nothing until all joints have been fabricated. Cut mortises in the stiles and tenon mullion rails to match. Cut the louvers to fit the frame. Dry fit the whole shutter before beginning.

Advertisement

Step 5

After fitting, sand the ends of the wood lightly and seal them with a bit of varnish. Glue the shutter together, beginning with the interior mullions or one side of the shutter. Clamp or tie the assembled shutter and let dry overnight. Sand the whole piece lightly before finishing with stain and varnish or exterior paint.
